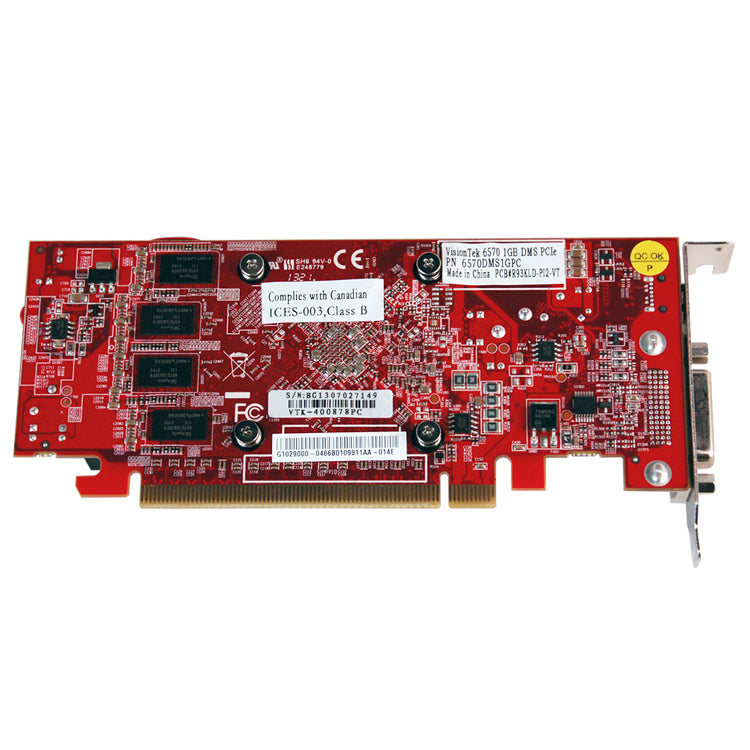

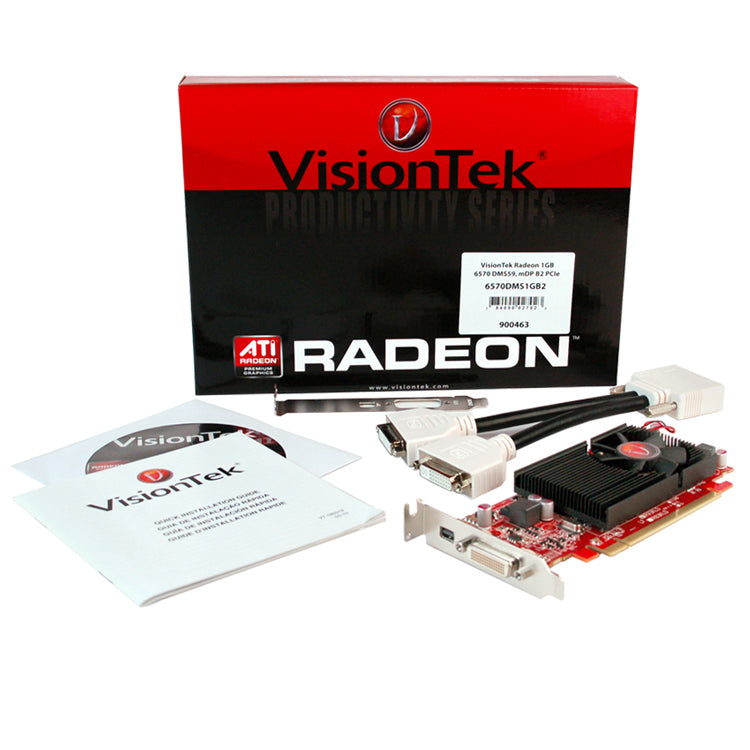

Radeon 6570 SFF 1GB DDR3 3M DMS59 (DVI-I, DVI-D, miniDP)

Radeon 6570 SFF 1GB DDR3 3M DMS59 (DVI-I, DVI-D, miniDP)

VisionTek Radeon™ HD 6570 Graphics Card

The VisionTek Radeon™ HD 6570 1GB SFF DMS59 x16 PCIe graphics card offers the most features and functionality in its class with complete DirectX 11 support and the world's most advanced graphics, display features and technologies. Tap into the processing power of your AMD Radeon™ HD 6570 GPU to accelerate applications with AMD Accelerated Parallel Processing (APP) technology. It allows you to do more, and do it faster. The AMD Radeon™ HD 6570 graphics processor is a next-generation visual upgrade that offers advanced video and display technologies, as well as 2nd generation support for DirectX 11 for the most versatile solution for everyday computing. Take advantage of AMD Radeon™ 6570's GPU acceleration capabilities and speed up your everyday application's as well as make use of amazing multimedia capabilities utilizing AMD EyeSpeed visual acceleration technology.

A great option for business users who engage in video conferencing or use creative applications that require fast frame rates and exceptional visual quality. With platform-independent intelligent power management, the Radeon™ HD 6570 Series graphics cards deliver the power needed to blaze through even the most intense applications while intuitively conserving energy at idle or when demand is low. Expand your visual workspace with multi-monitor support for advanced multi-tasking to help you get more done in less time. AMD also offers monthly Catalyst™ driver updates and industry leading customer support for your Radeon™ graphics products.

Short Form Factor design fits in today's Low Profile desktops and workstations (short bracket mounted on card). Card is convertible to standard ATX design with (included) tall bracket for standard chassis as well. Single slot, Dual Monitor support is now available for your Small Form Factor PC. Run up to 3 monitors simultaneously using Eyefinity mode.**The VisionTek Radeon HD6570 DMS59 combines a radically new and efficient ultra-threaded core architecture with AMD's revolutionary AvivoTM video and display technology. Full support for Microsoft DX11, DX 10.1 and DX9. The VisionTek Radeon HD6570 DMS59 delivers exceptional visual performance for all types of PC entertainment and productivity. Ideal for moderate gaming, multimedia, office productivity, and workstation applications.

High Definition 3D Performance & Image Quality for Your PC!
Full DX11, DX 10 and DX9 capability
Dual DVI or Single VGA mode
Short bracket (SFF) and Tall bracket (ATX) capable
Displayport

Eyefinity**
Compliant with next-generation DirectX® 11, Eyefinity Technology with DisplayPort connectivity, enables a single card to support up to three independent display outputs simultaneously.

Avivo™ Video and Display Technology
Avivo™ technology connects to high-resolution displays and home entertainment devices and produces vibrant colors, ultra sharp images, and the smoothest video playback ever offered by AMD.

Specifications

  • AMD RADEON 6570 GPU @ 650MHz
  • High speed DDR3 Memory
  • 1GB on board memory
  • x16 PCI Express

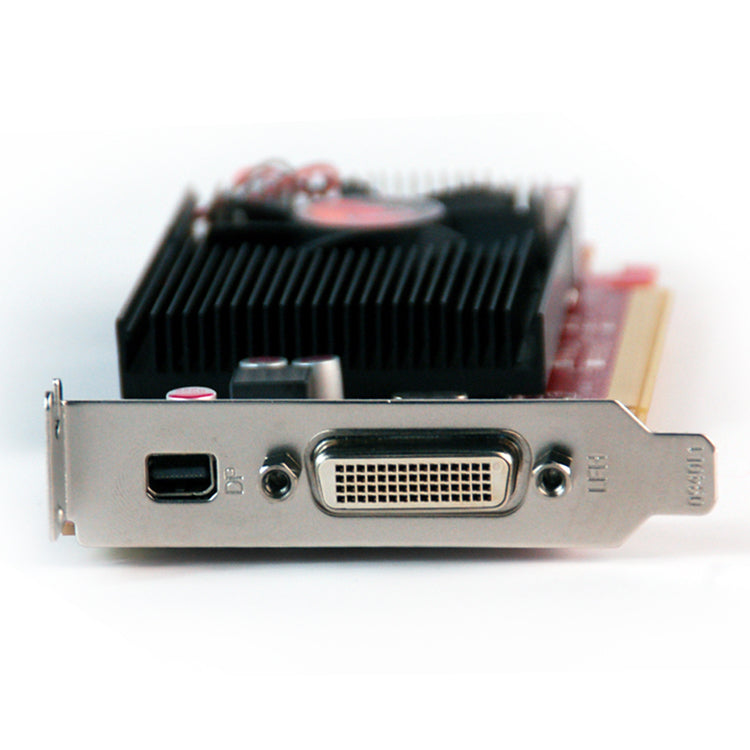

  • DMS59 connector, mini Displayport (support 3 monitors simultaneously)**
  • Dual DVI, Single VGA
  • HDMI video and audio supported*
  • Single slot solution
  • Small Form Factor design - 2.4" x 6.7"
  • Short bracket mounted on card
  • Convertible to tall bracket ATX form factor

Supported Configurations
Full Height Mode:

  • DVI x2 (single link)
  • Displayport x1
  • HDMI x1 (via DVI to HDMI adapter)*
  • Single VGA (via DVI to VGA adapter)

Short Form Factor Mode:

  • DVI x2 (single link)
  • Displayport x1
  • HDMI x1 (via DVI to HDMI adapter)*
  • Single VGA (via DVI to VGA adapter)

System Requirements

  • Intel® Pentium® 4/III, Celeron™, AMD™Duron™/Athlon™/Athlon™ XP, or compatible with x16 PCI Express slot
  • 256MB of system memory (1GB+ recommended for Windows Vista)
  • Installation software requires CD-ROM drive
  • DVD playback requires DVD drive
  • Correct Chipset drivers
  • 270 watt or greater power supply
  • Single x16 PCI Express expansion slot
Supported Operating Systems
  • Windows 10
  • Windows 8.1
  • Windows 8
  • Windows 7
  • Windows Vista
  • Windows XP - Limted to Dual Video and Single Audio only
Warranty: Three Years Limited



* HDMI Requirements: Requires DVI to HDMI adapter (sold separately)

** Eyefinity Connectivity Requirements: Eyefinity technology is supported on this model when in all three output connectors are in use. The following restrictions apply:

  • A maximum of 2 legacy monitors (VGA, DVI or HDMI) can be enabled simultaneously, provided that each monitor is connected either directly or via a "passive" DisplayPort™ adapter/dongle. "Passive" adapters/dongles will NOT support more than 2 legacy monitors.
  • To enable support for more than 2 monitors, "active" DisplayPort™ adapters/dongles are required (or monitors with direct DisplayPort™ connectivity must be used).
  • Approved "active" adapters have no general connectivity restrictions with Eyefinity technology.



NOTE: If you desire monitor to GPU syncing with a VisionTek graphics card, we recommend the use of AMD’s FreeSync solution only. Visit http://www.amd.com/en-us/innovations/software-technologies/technologies-gaming/freesync for more information.
