VisionTek VT4950 USB-C KVM Docking Station | Triple 4K Display | Dual Host Switch | DisplayLink + DP Alt Mode | 100W Power Delivery Per System | 230W Power Adapter Included | Windows, Mac, ChromeOS Compatible

VisionTek

VisionTek VT4950 USB-C KVM Docking Station | Triple 4K Display | Dual Host Switch | DisplayLink + DP Alt Mode | 100W Power Delivery Per System | 230W Power Adapter Included | Windows, Mac, ChromeOS Compatible

$194.99

1 total reviews

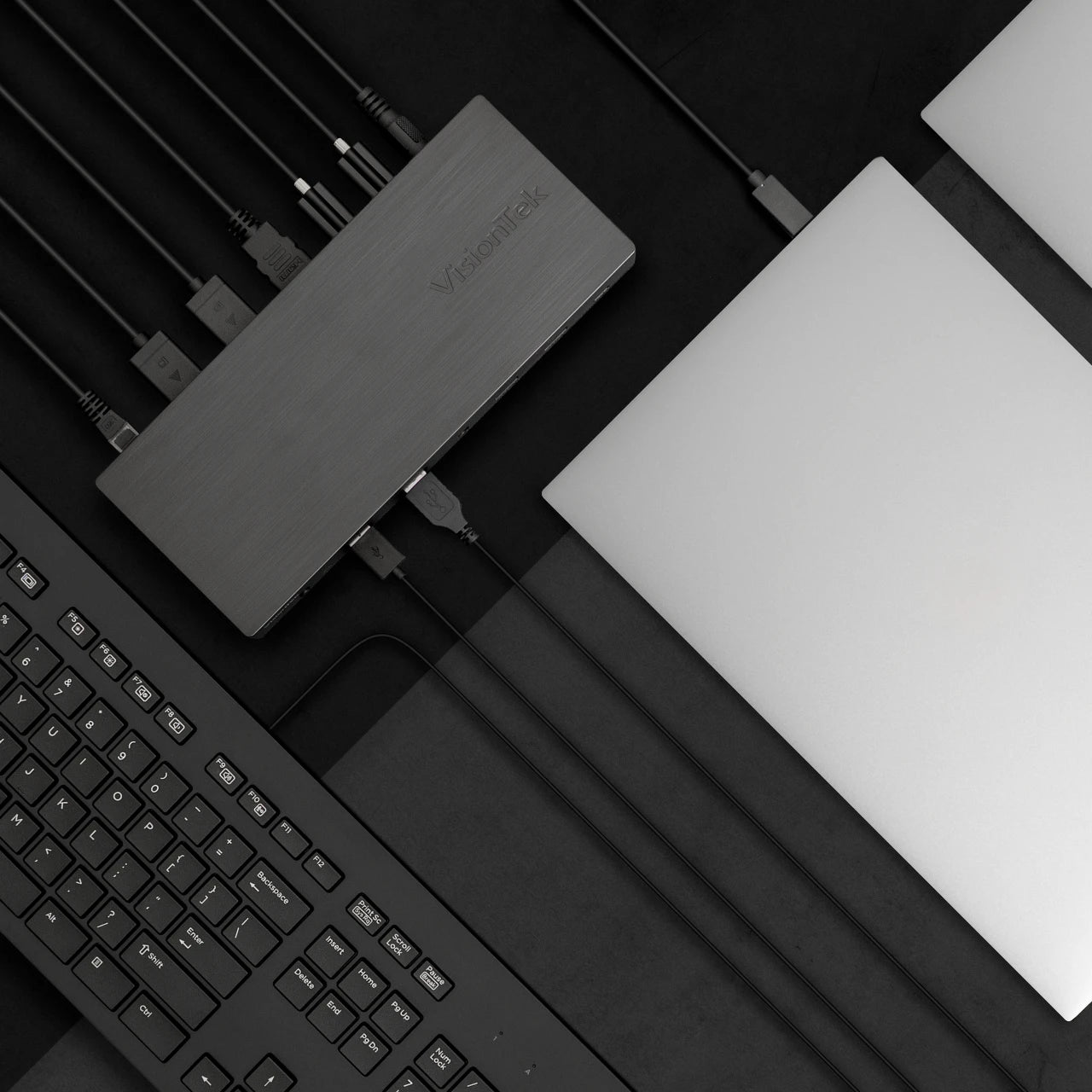

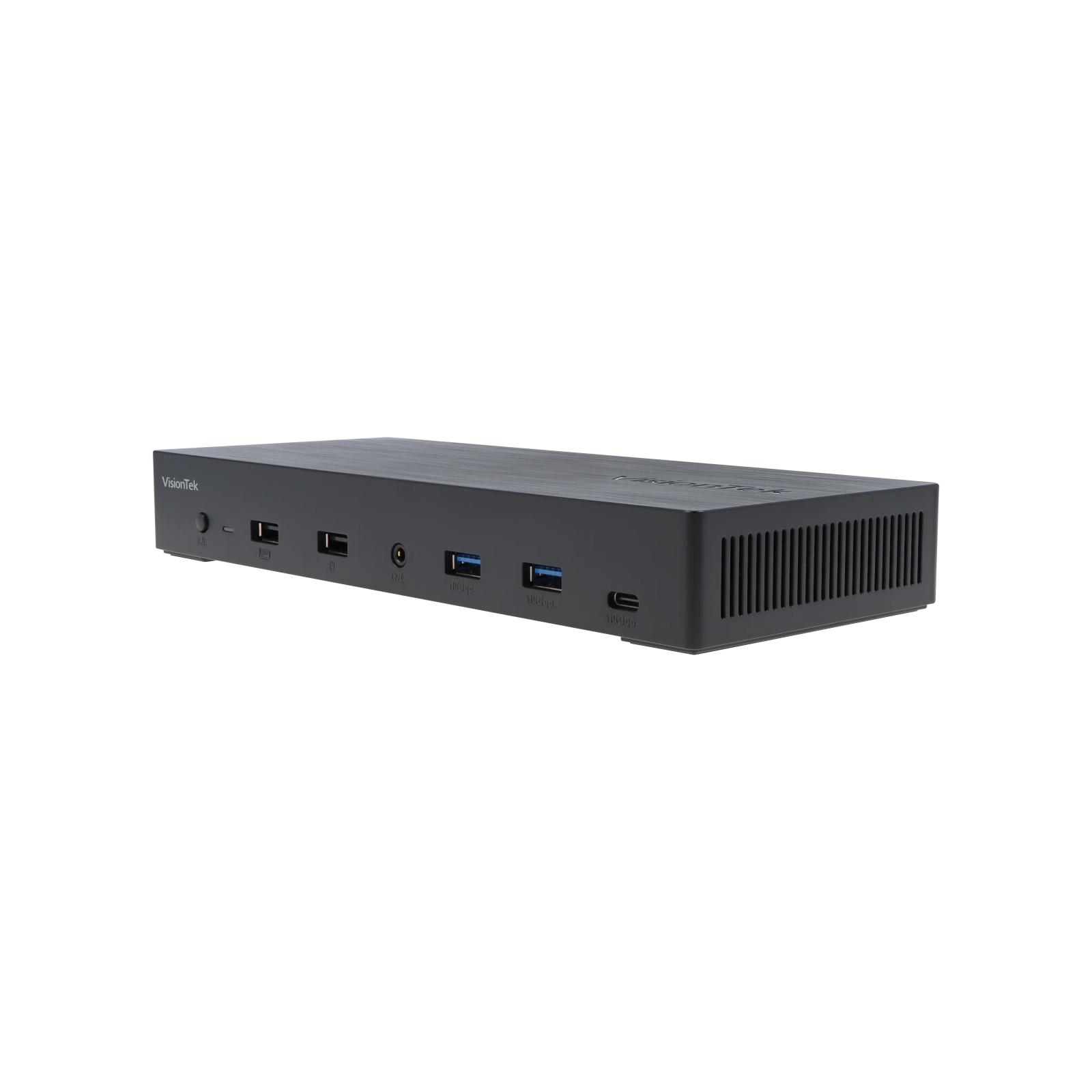

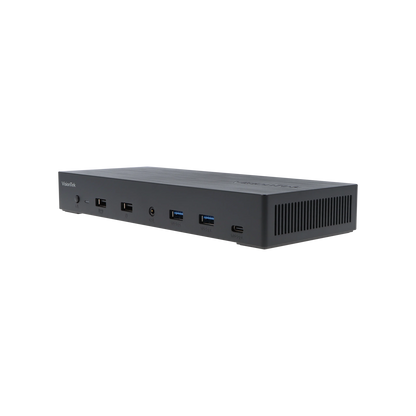

The VisionTek VT4950 USB-C KVM Docking Station simplifies dual-system setups by allowing you to switch between two laptops while sharing monitors, peripherals, Ethernet, and audio. Supports up to three 4K displays using DisplayLink and DP Alt Mode, with dual 100W Power Delivery for simultaneous laptop charging. Equipped with DisplayPort 1.4, HDMI 2.0, high-speed 10Gbps USB-A/C ports, and Gigabit Ethernet, it’s ideal for business, creative, and hybrid workspaces. Includes 230W certified power adapter for full system support.

Supports 2 Displays via DisplayLink and 1 Display via DisplayPort over USB-C
Dual USB-C connections to Host systems
1x HDMI, 2x DP, 4x USB, 1x USB-C, Audio, Ethernet, Kensington Lock
100W of Power Delivery via USB-C to each system

Product variants

In stock, ready to ship

Complete Your Tech Set Up

Share:

Share

Need help?

Free Shipping Over $50

Call Our U.S.-Based Support Team

30-day risk-free returns

Quick Plug-and-Play Set Up

$194.99

Premium Performance Without the Premium Price.

Description

The VisionTek VT4950 USB-C KVM Docking Station simplifies dual-system setups by allowing you to switch between two laptops while sharing monitors, peripherals, Ethernet, and audio. Supports up to three 4K displays using DisplayLink and DP Alt Mode, with dual 100W Power Delivery for simultaneous laptop charging. Equipped with DisplayPort 1.4, HDMI 2.0, high-speed 10Gbps USB-A/C ports, and Gigabit Ethernet, it’s ideal for business, creative, and hybrid workspaces. Includes 230W certified power adapter for full system support.

Supports 2 Displays via DisplayLink and 1 Display via DisplayPort over USB-C
Dual USB-C connections to Host systems
1x HDMI, 2x DP, 4x USB, 1x USB-C, Audio, Ethernet, Kensington Lock
100W of Power Delivery via USB-C to each system

Key Features

Universal Compatibility - Windows / macOS / ChromeOS
USB-C Connection to Host
2 Displays Powered by DisplayLink USB Graphics
1 Display Powered by USB-C DP Alt Mode
Connect and switch display, keyboard, mouse and accessories between 2 systems
Supports up to 3 external displays
Charge 2 laptops up to 100W each

System Requirements

Operating Systems:
Windows 11
Windows 10
Windows 8.1
Windows 7
macOS 10.12 and later
Chrome OS

System Support Requirement:
USB-C Port

Note: Not all USB-C Ports will support the full functionality of the USB-C standard required by this docking station. Ensure that the Host Computer’s USB-C Port supports DP Alt Mode, as well as USB Power Delivery. In order to output to 4K @ 60Hz over HDMI, the Host Computer must support DP 1.4. For best compatibility Host Computer with USB-C 3.2 Gen 2 ports recommended.

Dock to System Connection:
USB-C
USB4
Thunderbolt 3
Thunderbolt 4
Thunderbolt 5

Technical Specifications

Part #: 901520
Dock Connection: USB-C 10Gbps
Display Technology: Hybrid DisplayLink / DP Alt Mode
Power Adapter: 230W - DC 20V/11.5A
Power Delivery: Up to 100W per system
Displays Supported: Up to 3

Maximum Resolution Supported:
1 x 4K @ 60Hz (4096 x 2160) DisplayPort or HDMI*
2 x 4K @ 60Hz (4096 x 2160) DisplayPort + DisplayPort or DisplayPort + HDMI*
3 x 4K @ 60Hz (4096 x 2160) DisplayPort + DisplayPort + HDMI*

*Host System must support USB-C DP Alt Mode for video output from HDMI, Host System must support USB-C DP Alt Mode and DisplayPort 1.4 for HDMI 4K @ 60Hz

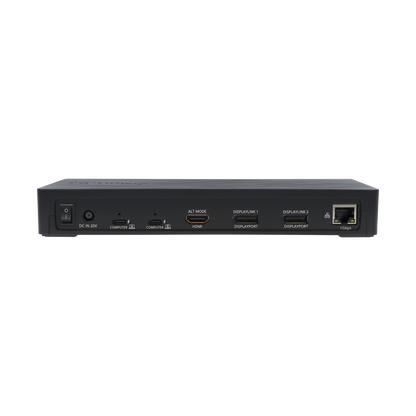

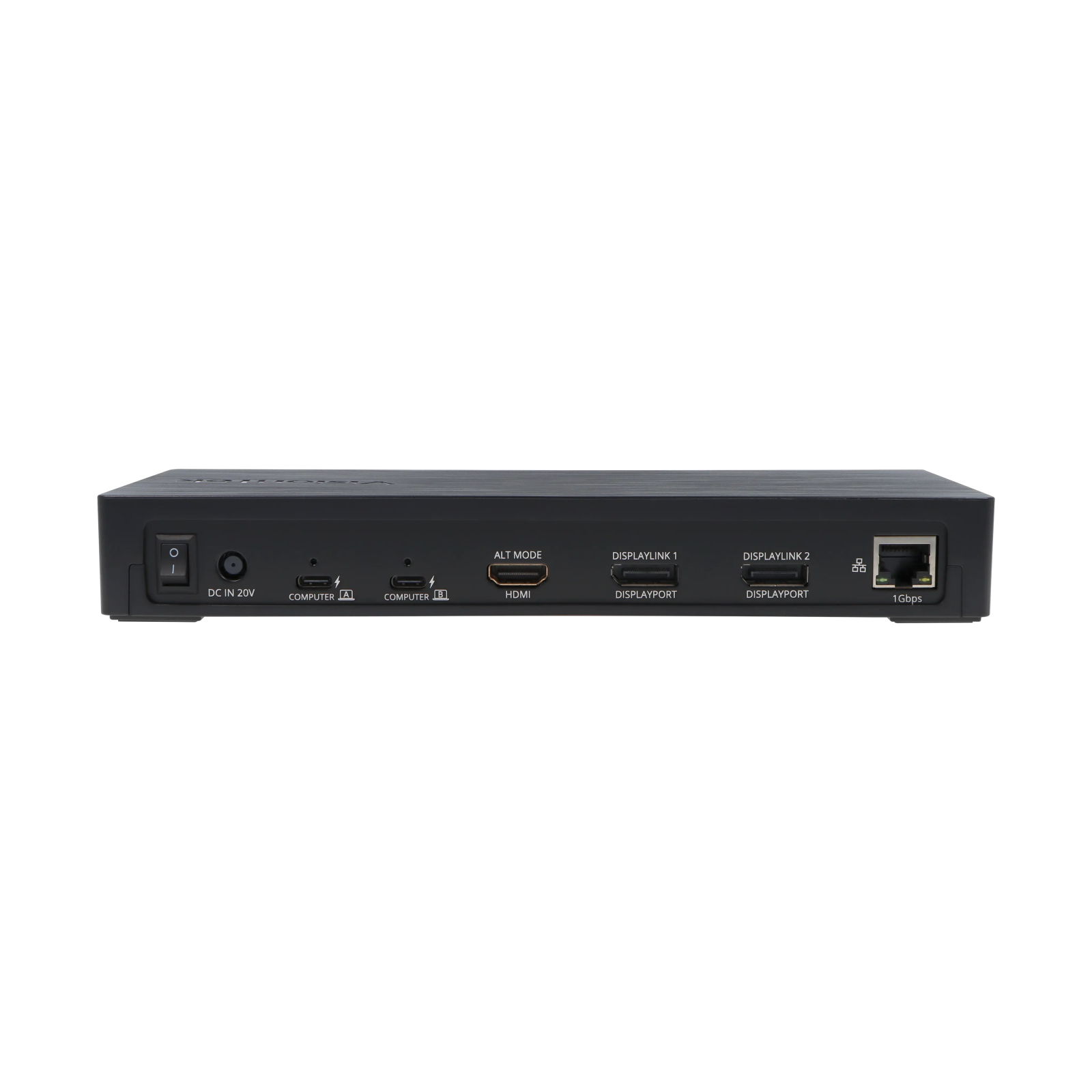

Video Interfaces:
(2) DP 1.4
(1) HDMI 2.0

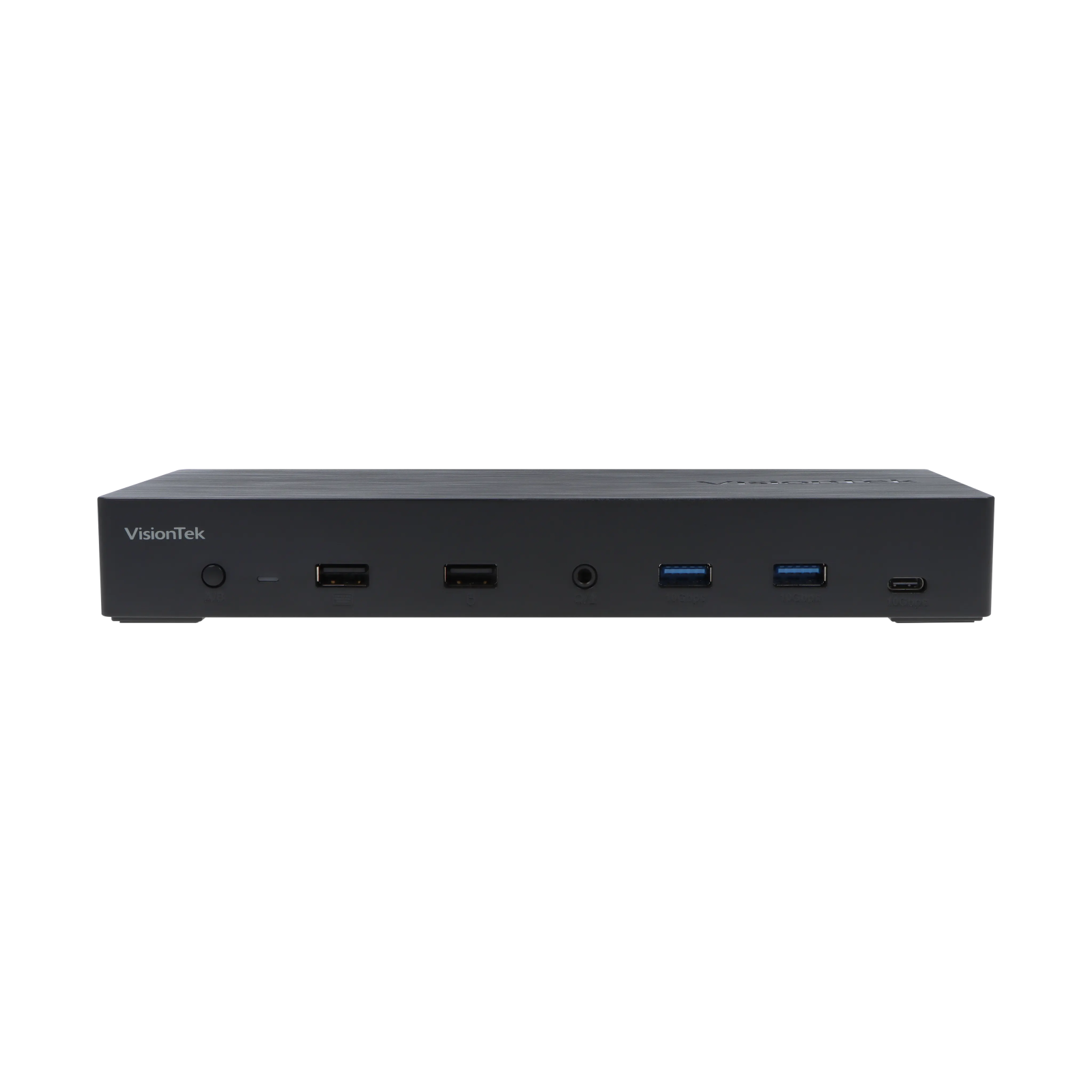

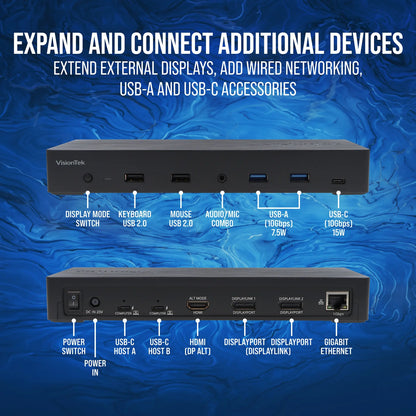

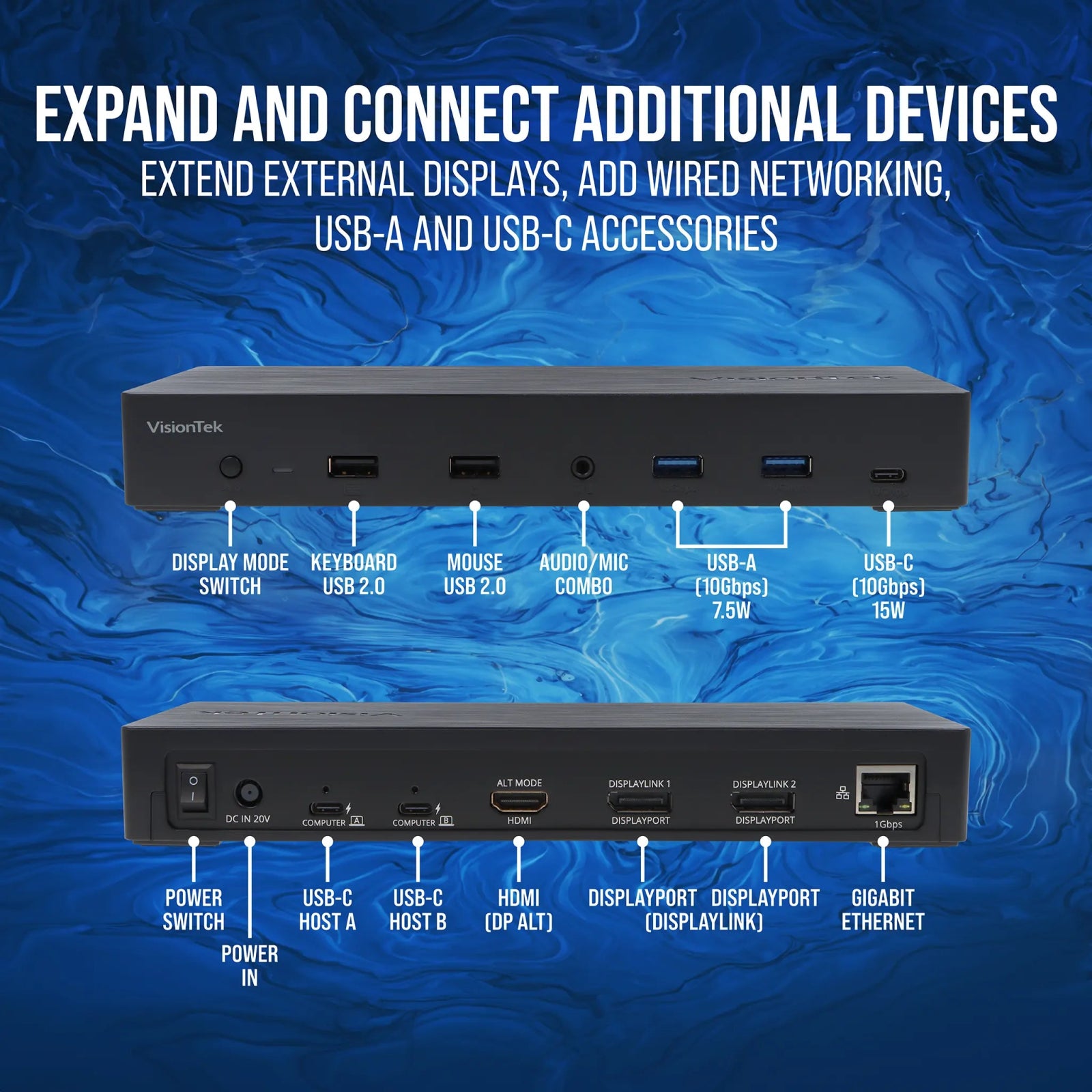

Ports:
(2) USB-A 10Gbps
(1) USB-C 10Gbps
(1) USB-A 2.0 Keyboard
(1) USB-A 2.0 Mouse
(1) 3.5mm Audio
(1) 3.5mm Microphone
(1) RJ45 Gigabit Ethernet

Cable Length: (2) 1m - USB-C 10Gbps
Dimensions LxWxH: 8.8 x 3.6 x 1.1 inches
Weight: 13.7oz

What's In The Box

VT4950 Dock
2 x USB-C 10Gbps Cables (1m)
230W - DC 20V/11.5A Certified Power Adapter
User Manual
