CHAT WITH OUR TEAMMassive 6-monitor support. Crisp 4K. Just 75W. The RX 580 6M is a powerhouse built for trading floors, digital signage, and creative multitaskers—no extra power cables required.
Adding product to your cart

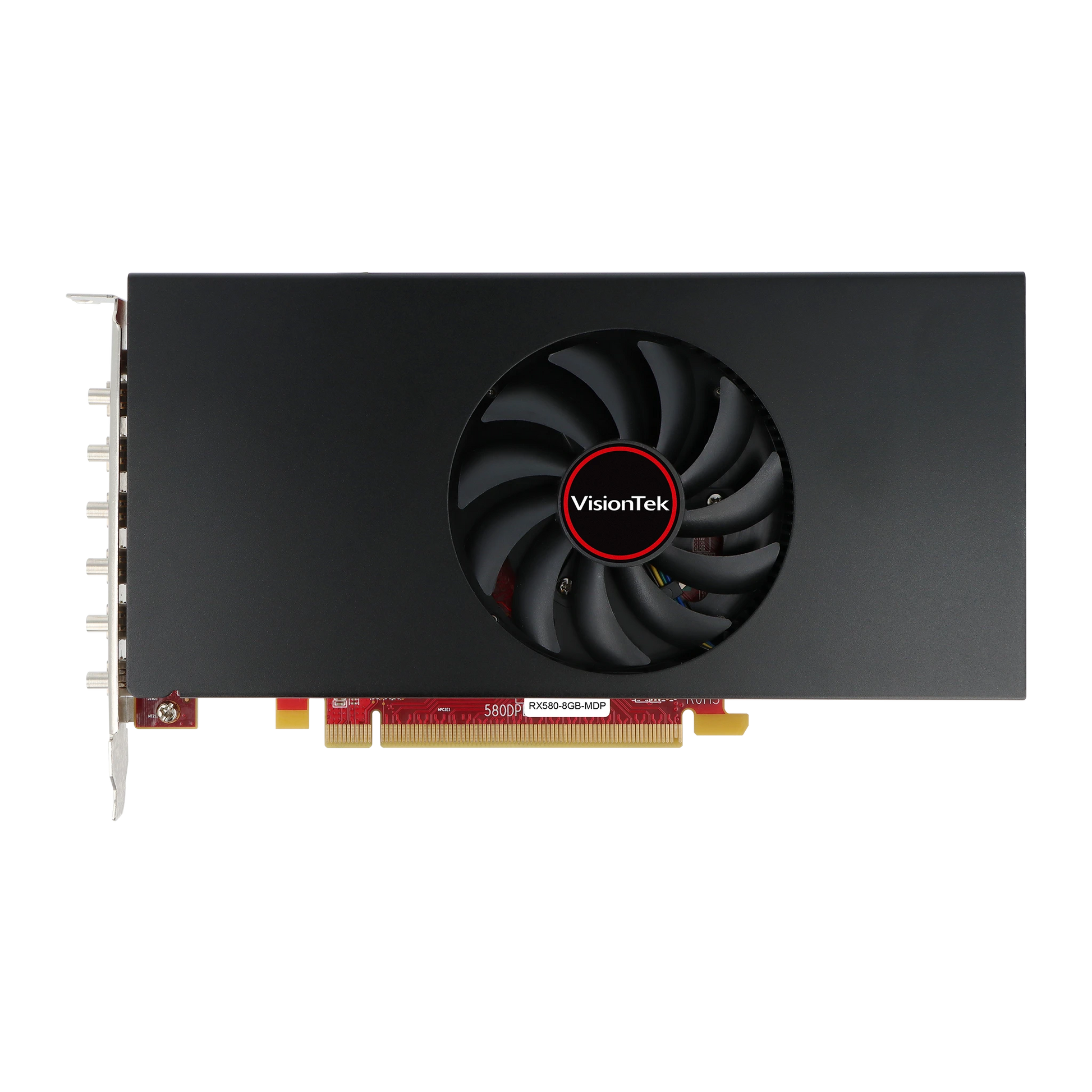

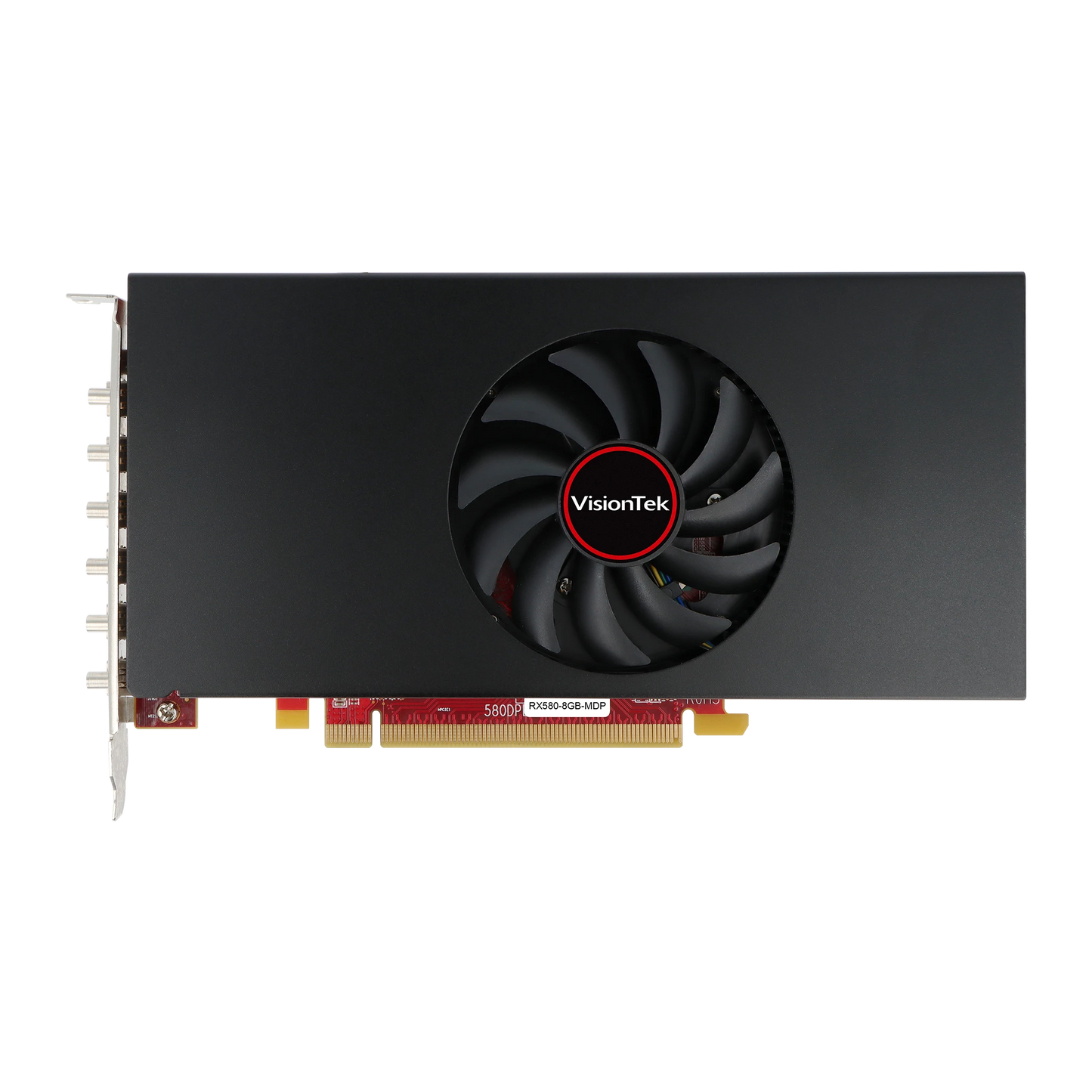

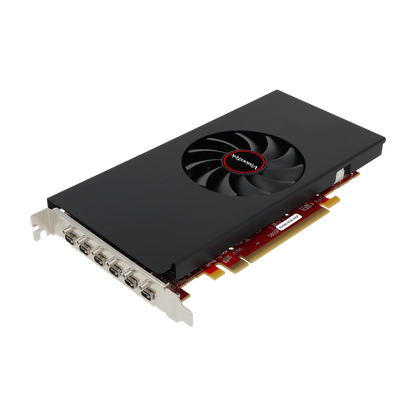

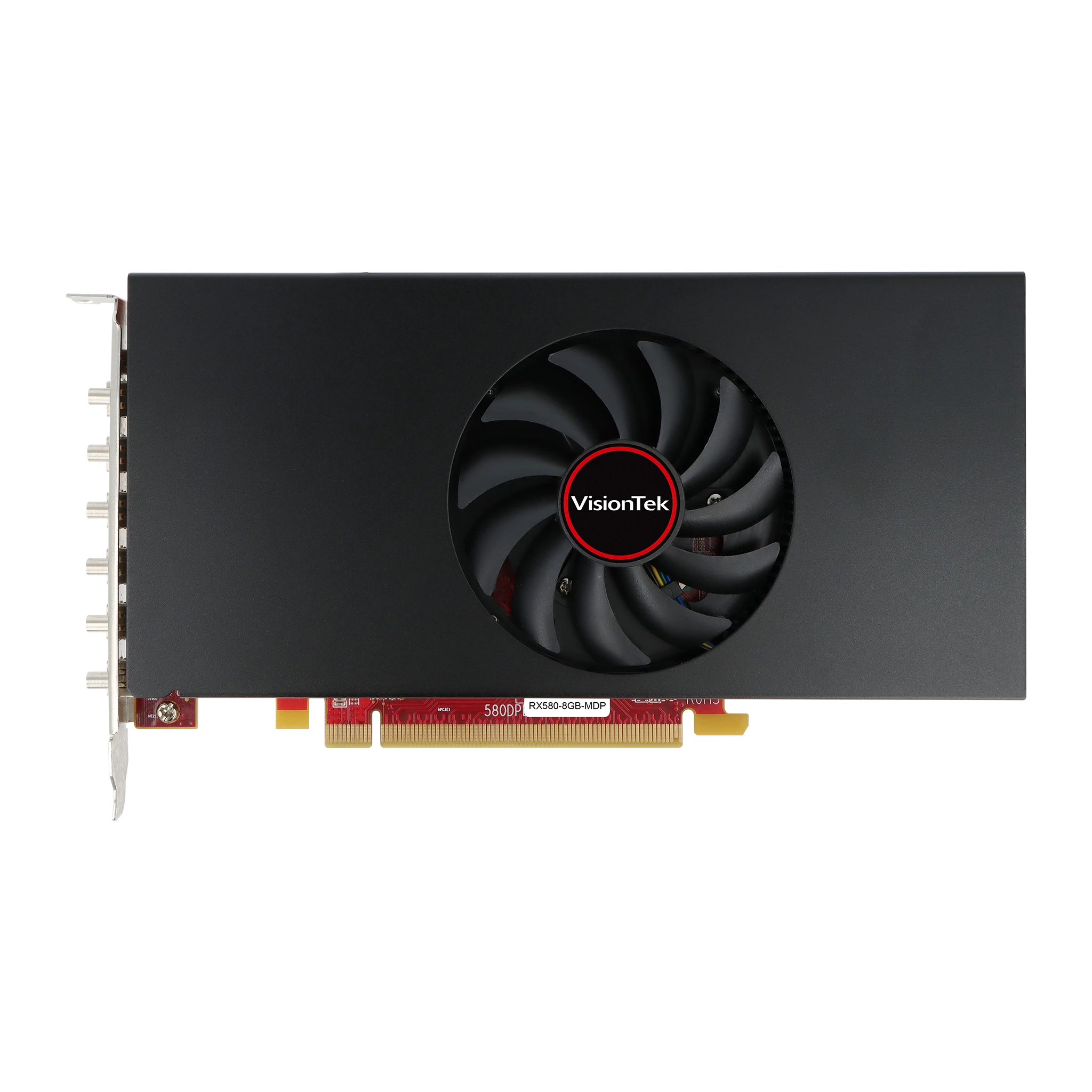

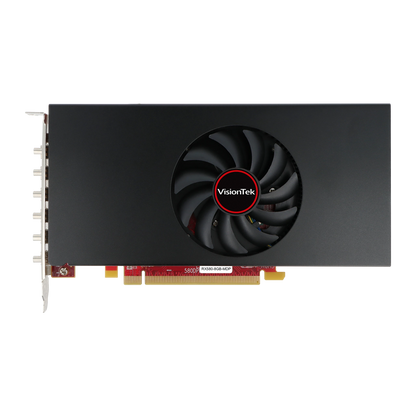

Level up your multi-monitor productivity with the VisionTek Radeon RX 580 8GB GDDR5 6M graphics card. Designed for demanding commercial environments, this card supports up to six 4K displays via six Mini DisplayPort 1.4 outputs—ideal for stock traders, control rooms, corporate signage, and medical boards.

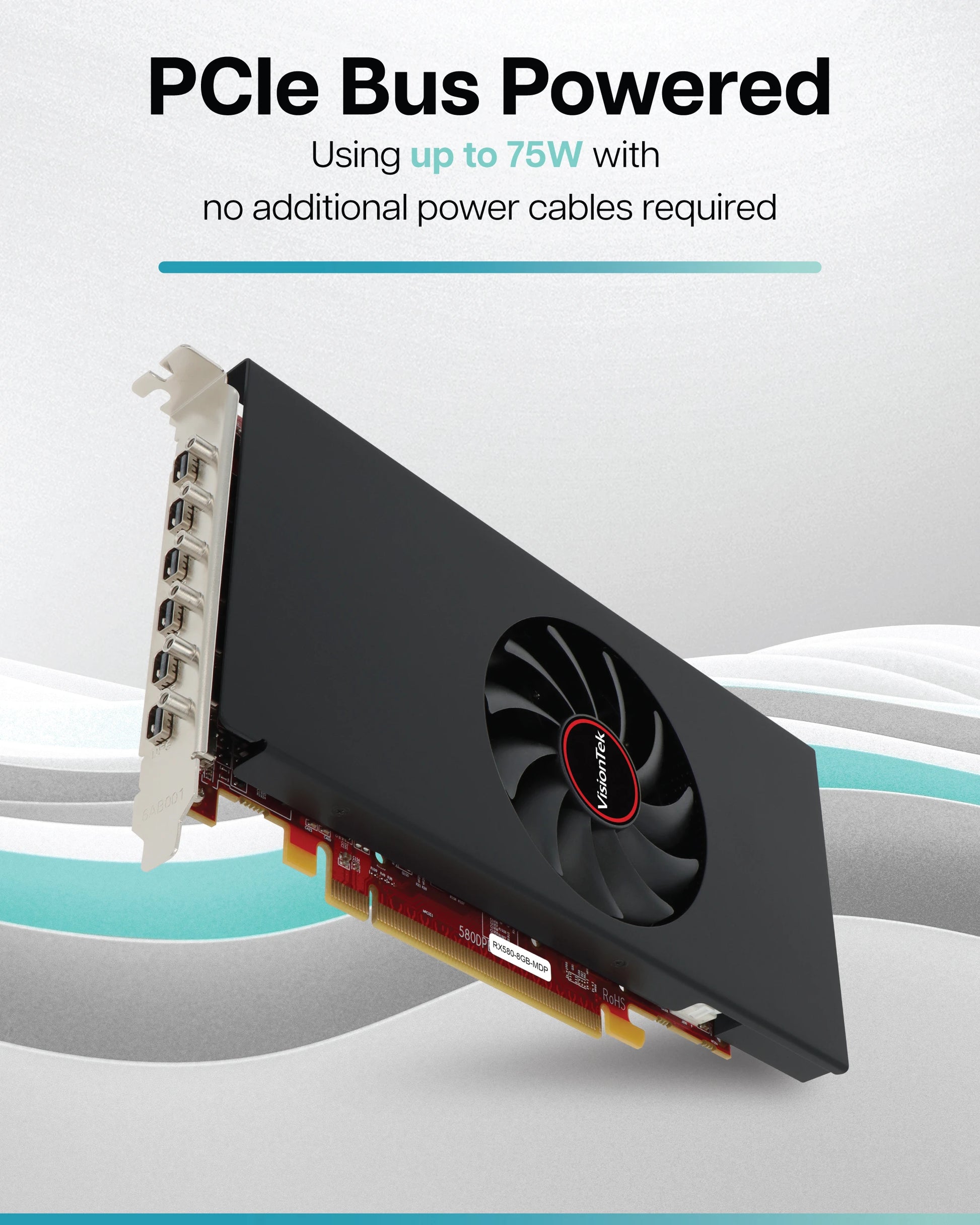

With 2048 stream processors, a 1244MHz clock speed, and 224GB/s memory bandwidth, you’ll experience fluid visuals and responsive performance. The card is fully PCIe bus powered (75W)—no external power required—making it a perfect solution for systems with limited PSU capacity.
Backed by 8GB of high-speed GDDR5 memory, this RX 580 supports DirectX 12, AMD Eyefinity, FreeSync, Virtual Super Resolution, and Radeon ReLive for enhanced compatibility and media capture. Runs seamlessly on Windows 11, legacy Windows versions, and most major Linux distros.
Free Shipping Over $50
Easy 30 Day Returns
Need Help? Call VTK Support
Part #: 901790
GPU: AMD Radeon™ RX 580 6M 8GB GDDR5
Bus Type: PCIe 3.0 x16
Stream Processors: 2048
Clock Speed: Up to 1244MHz
Memory Speed: 1750MHz
Memory Size: 8GB
Memory Type: GDDR5
Memory Bandwidth: 224GB/s
Power Consumption: 75W

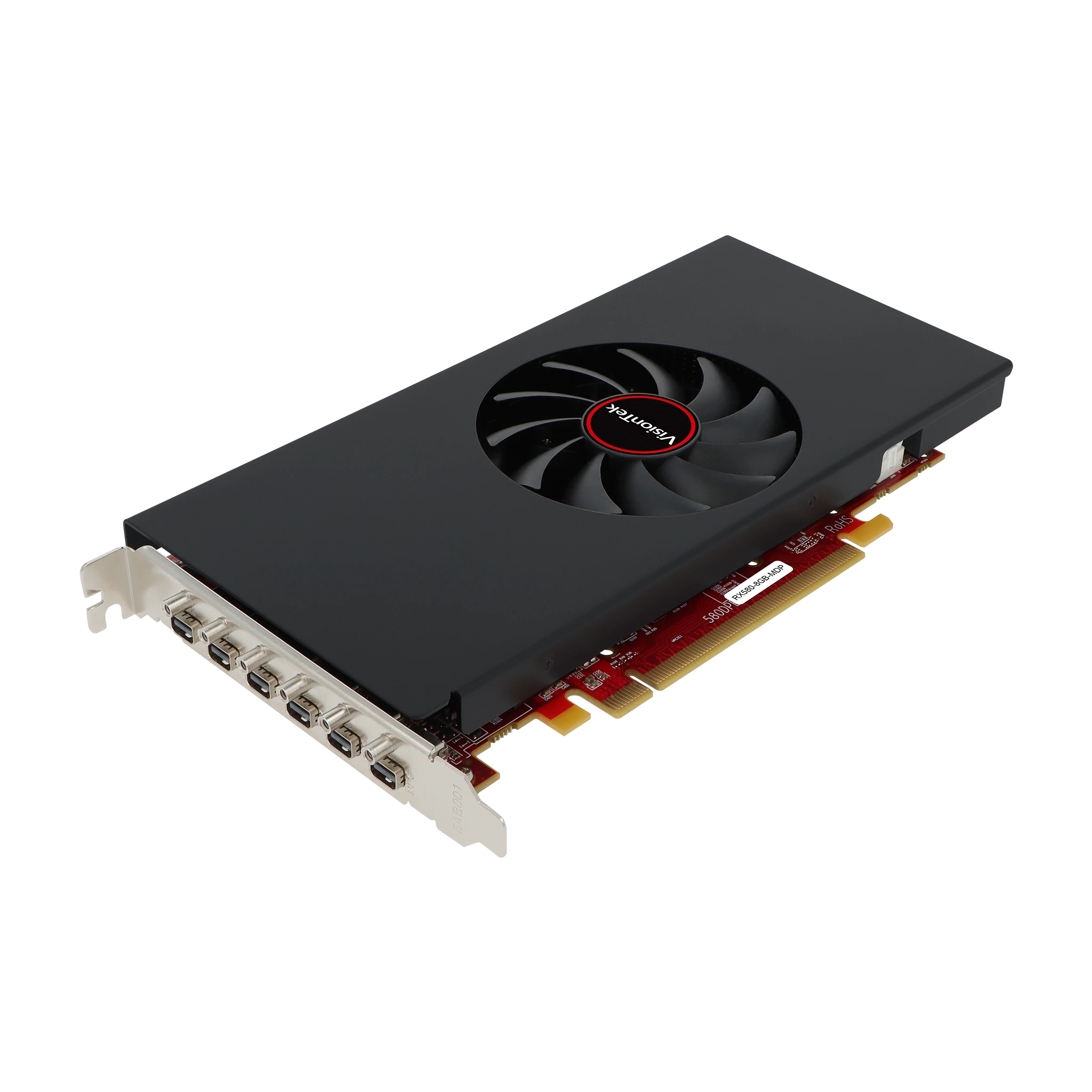

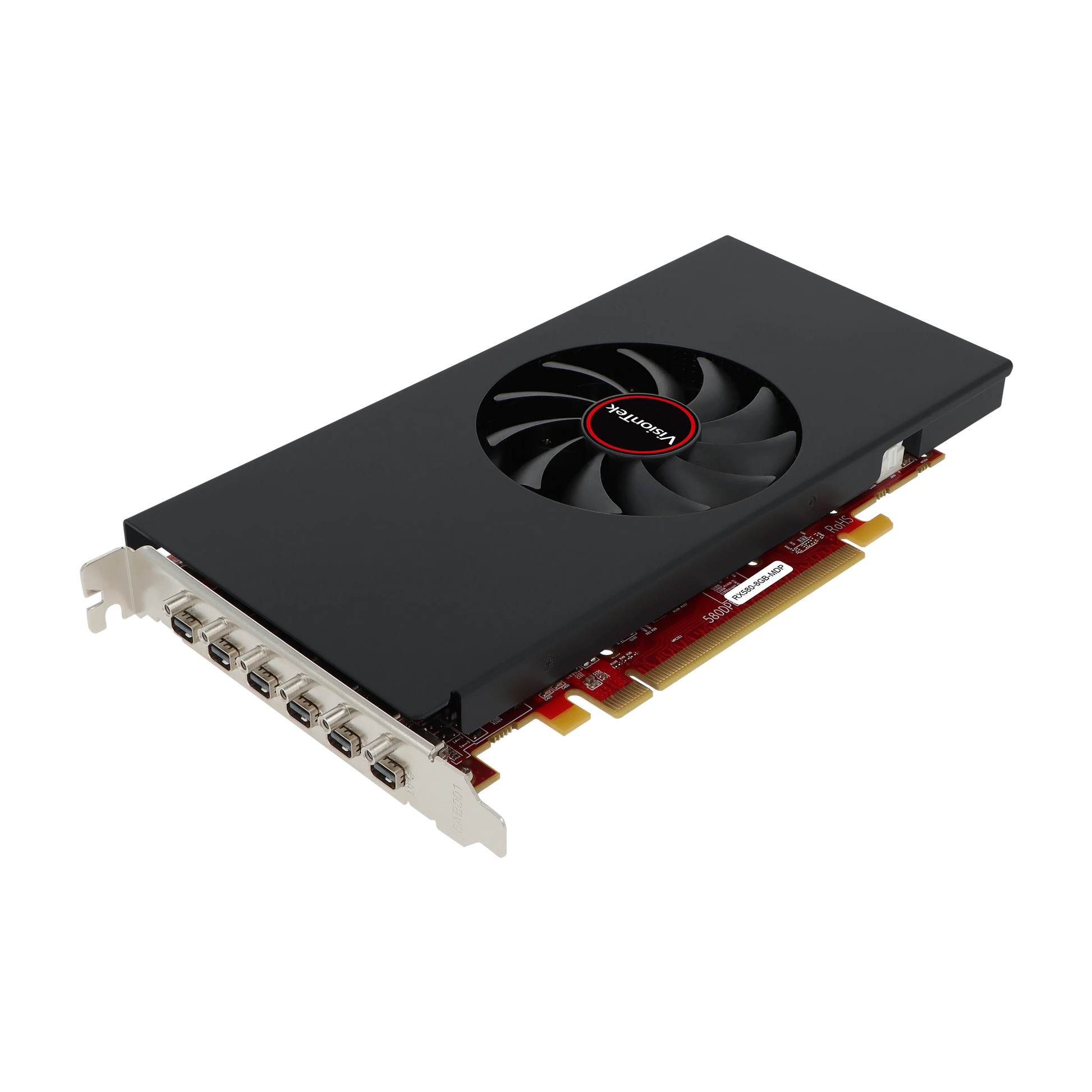

Outputs: (6) mDP
Displays Supported: Maximum 6 Displays

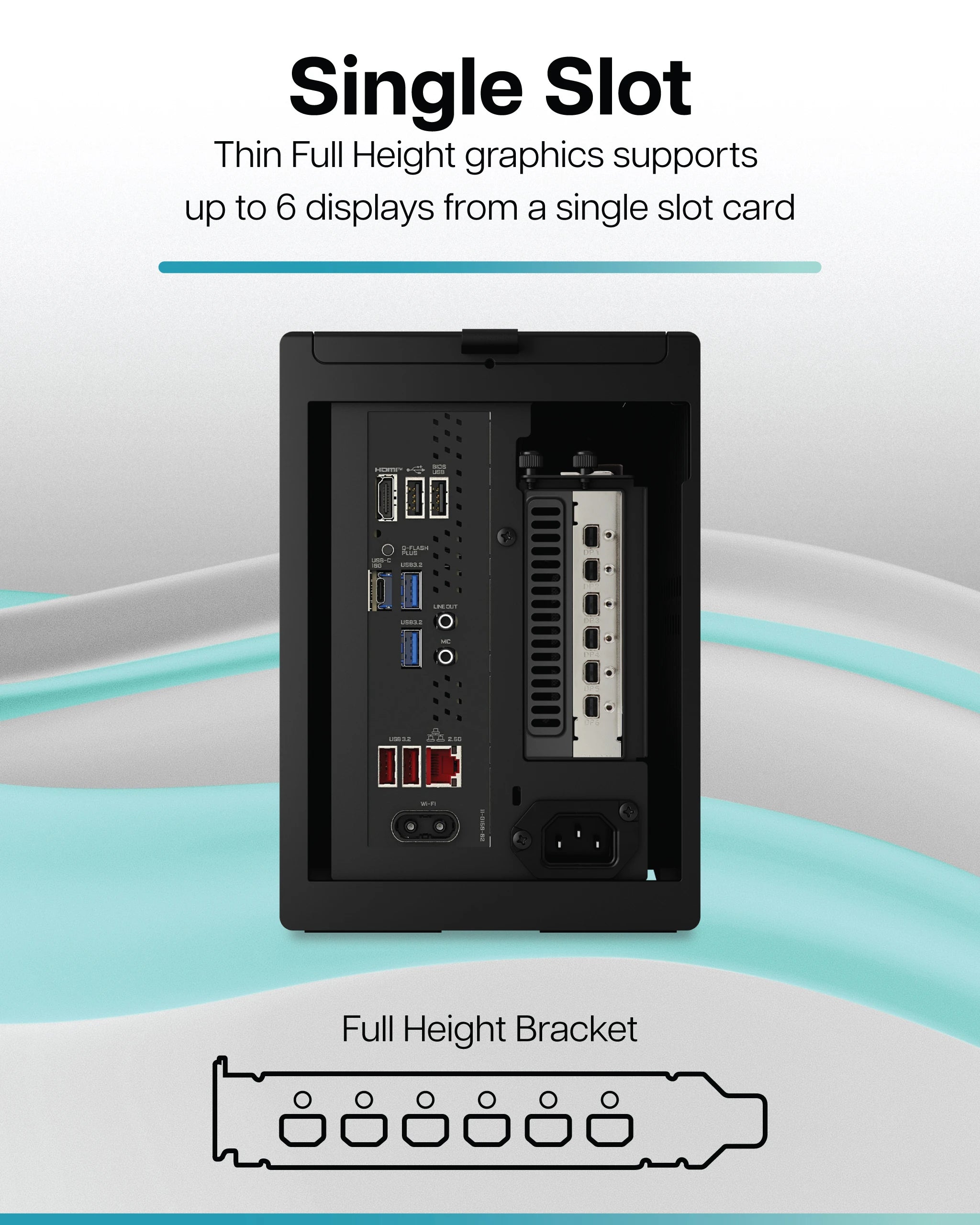

Slot: 1 Slot
Dimensions LxWxH:
8.12 x 4.44 x .69 inches
206 x 113 x 17 mm
Weight: 15.8oz

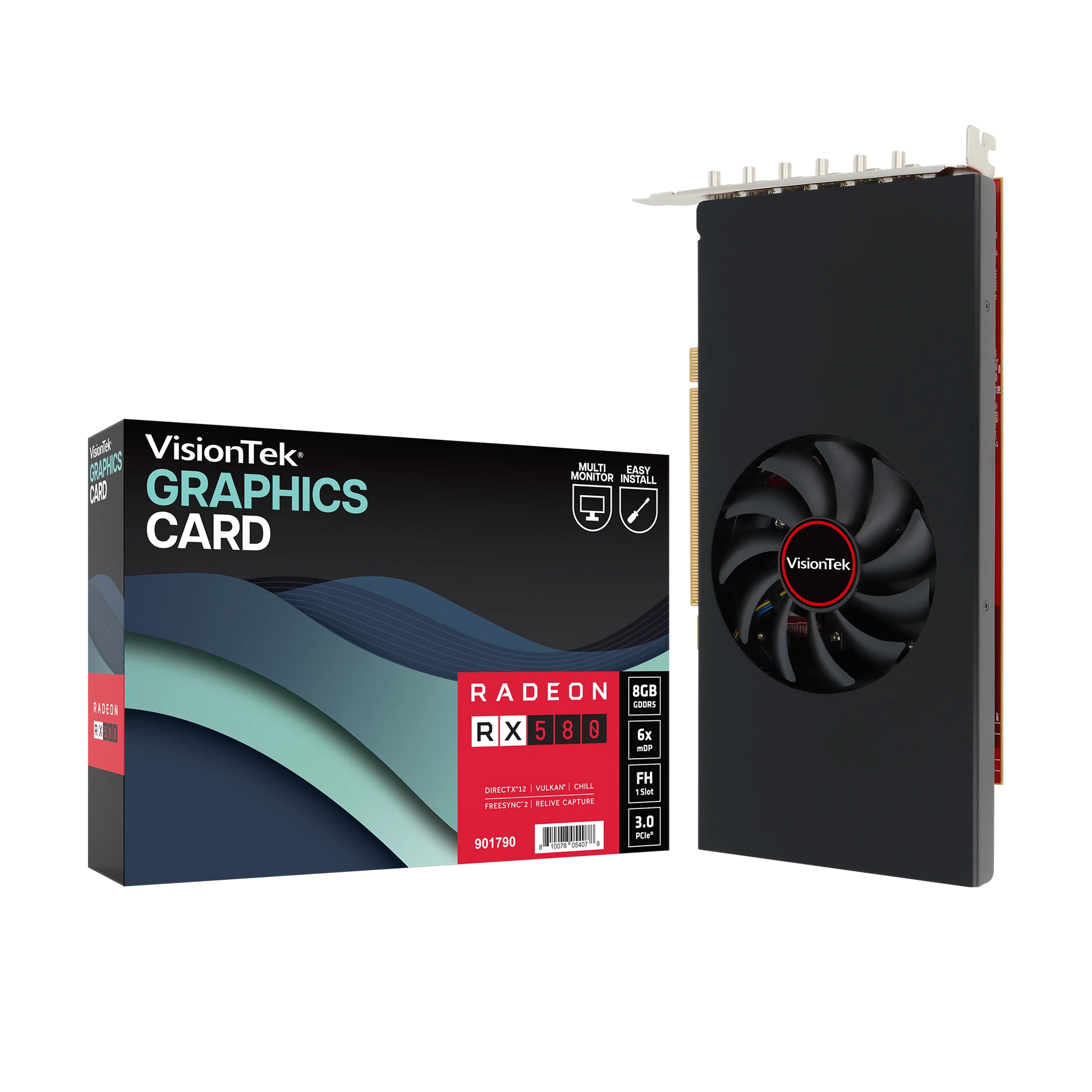

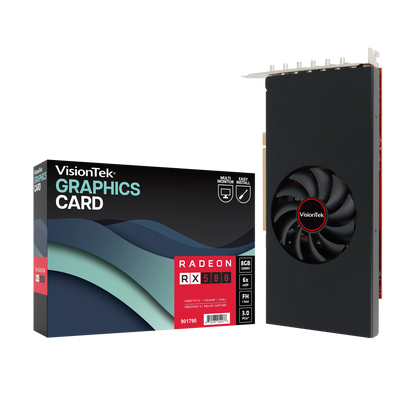

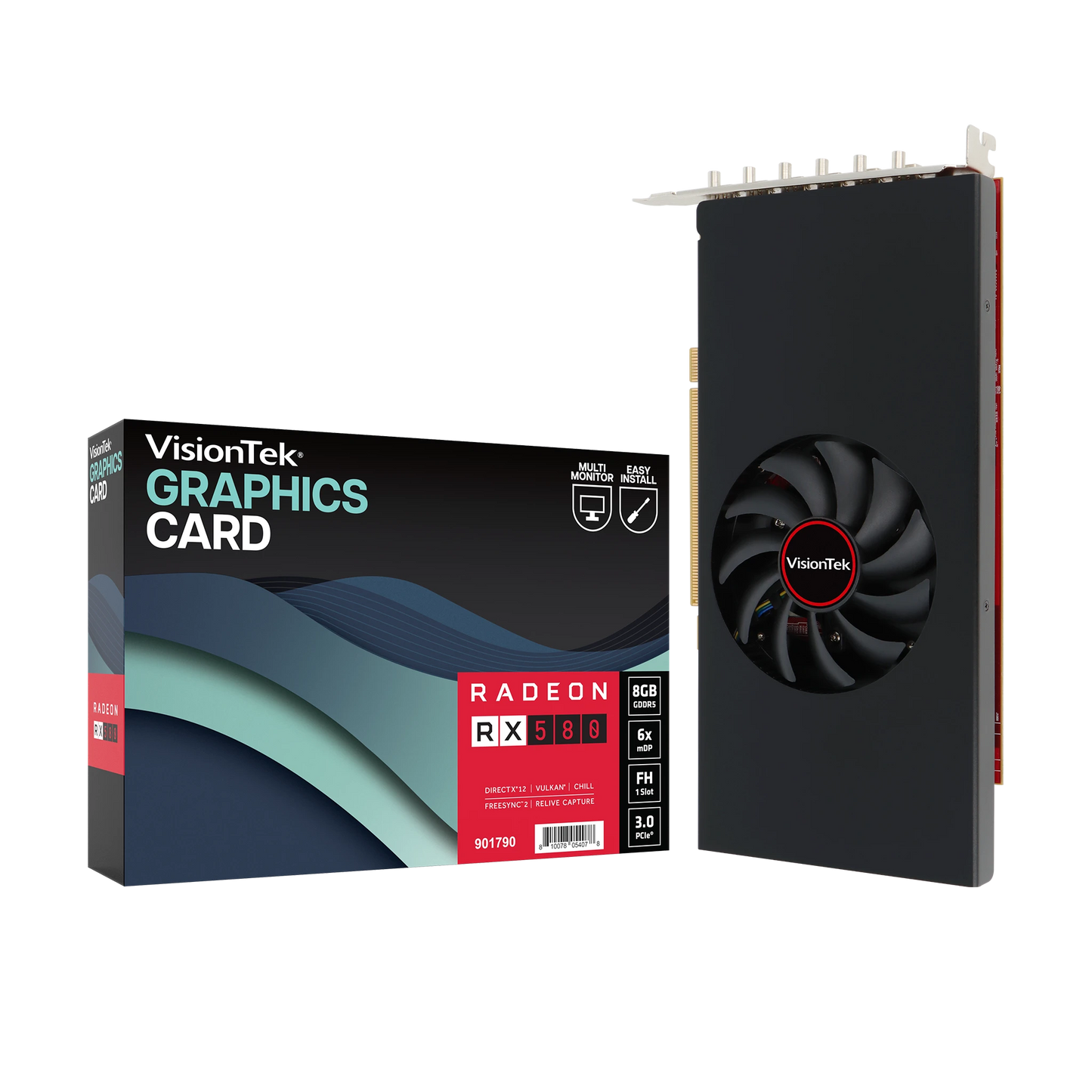

Radeon RX 580 8GB 6mDP GPU
Note: Connecting a DP monitor to a DP or mDP port on a card, active adapters are unnecessary. To output from more than 2 non DisplayPort monitors Active Adapters or Active Cables are required.
3 Year Limited
Product must be registered within 30 days of purchase to be covered by the full 3-Year Warranty period*. Products not registered within 30 days of purchase will default to our 1-Year Warranty period.
To register your product, please visit the Warranty Registration page.
For additional warranty information, please visit the VisionTek Warranty page.

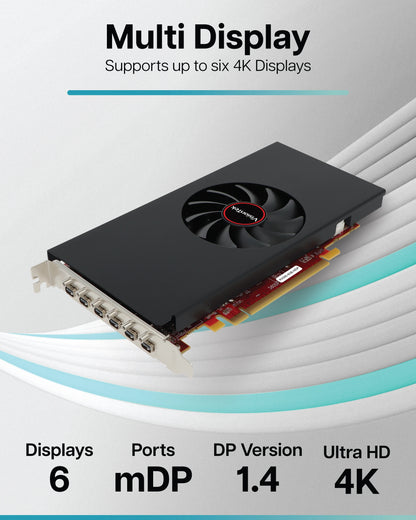

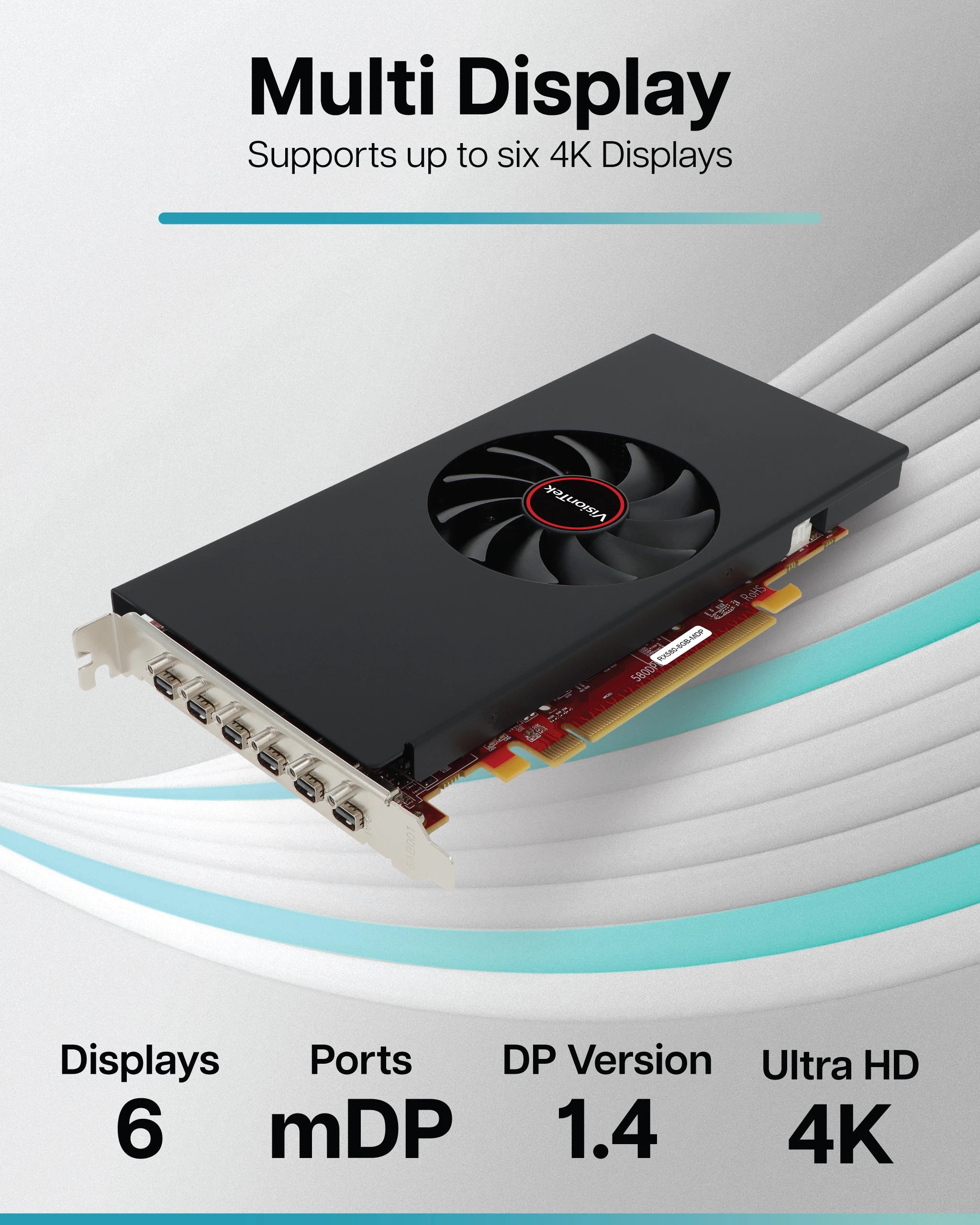

6 Display support via 6 x mDP

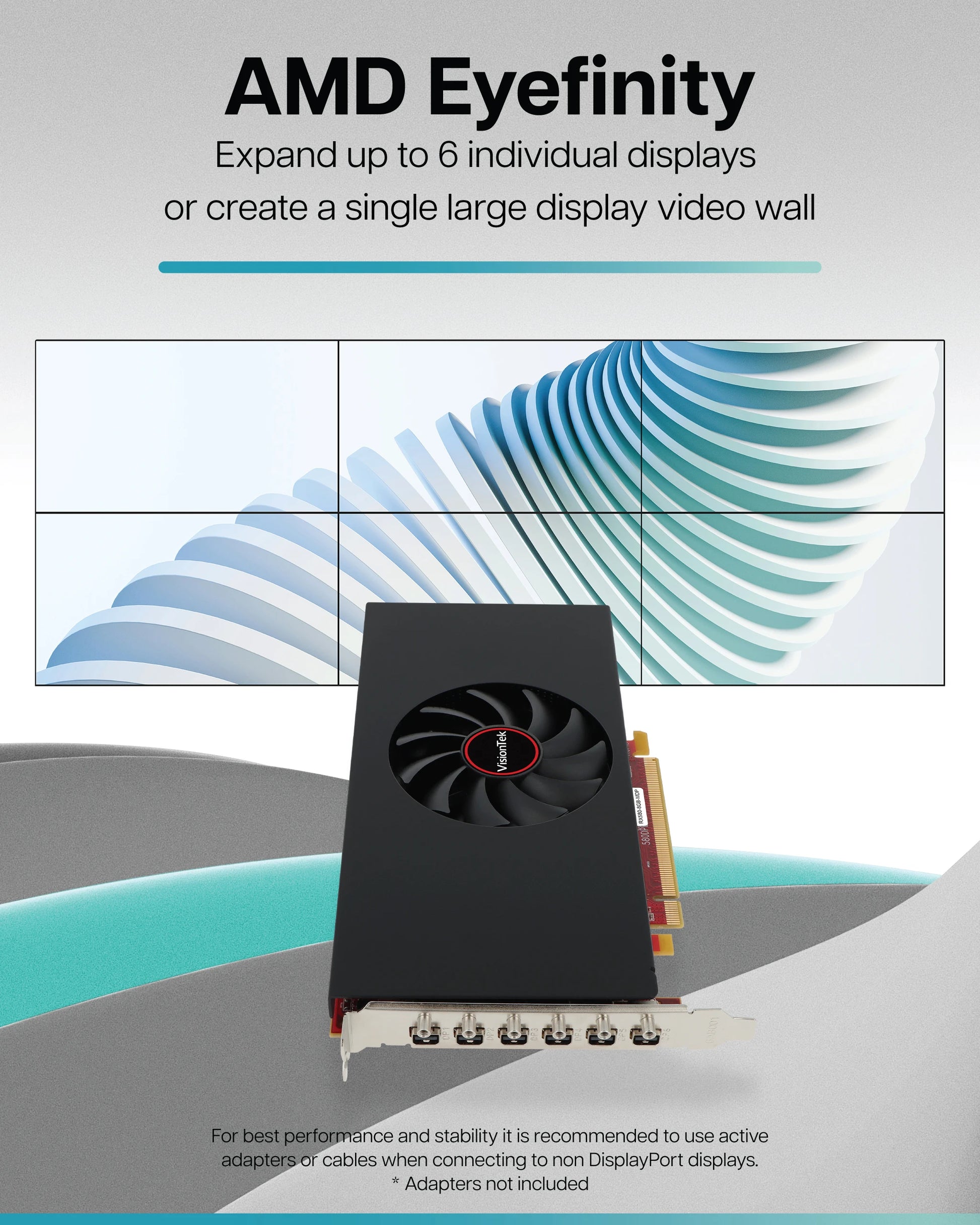

AMD Eyefinity Technology
AMD PowerTune Technology
AMD FreeSync™ Technology
AMD Radeon™ Chill
AMD Readeon™ ReLive
AMD Virtual Super Resolution
DirectX® 12Open CL™ 2.0
Open GL® 4.5Video Code Engine (VCE)
Bus: PCIe 3.0 x16 lane slot (backwards compatible)
Minimum PSU: 350W or greater
System Memory: Minimum 4GB, Recommended 8GB
Operating System: Windows 11, Windows 10, Windows 7, Ubuntu x86 64-Bit, Linux x86_64
