Ideal for lighter laptops and mobile devices, the VisionTek 45W GaN Wall Charger powers two devices simultaneously with smart, efficient charging. Its GaN II design keeps size compact and heat low while safely delivering fast charge speeds to phones, tablets, Chromebooks, and ultrabooks. Reliable power wherever work or travel takes you.

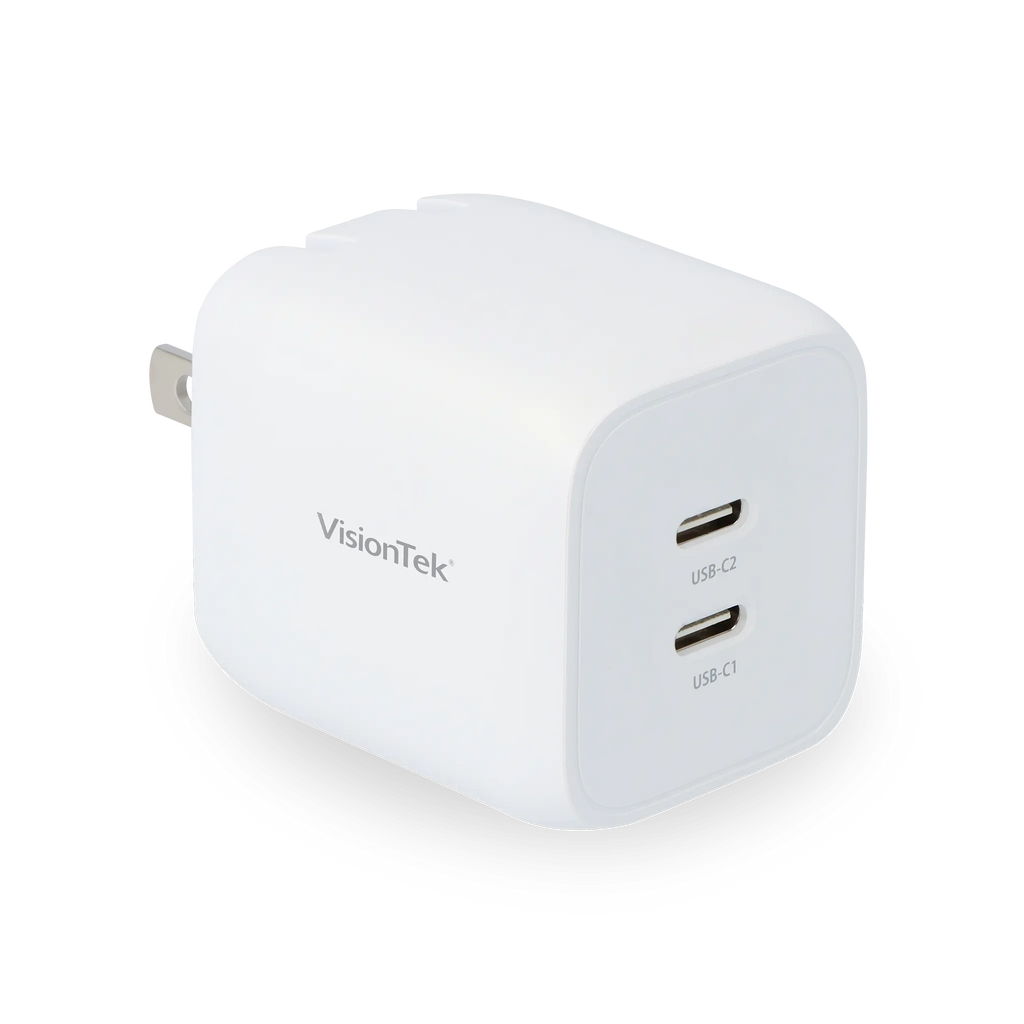

The VisionTek 45W GaN USB-C Wall Charger delivers fast, efficient charging for USB-C devices, including smartphones, tablets, Chromebooks, and ultrabooks. Featuring dual USB-C ports with Power Delivery 3.0 and PPS support, it intelligently distributes 45W of total output across multiple devices. GaN II technology allows for a smaller, cooler, and more efficient design perfect for travel or desk setups. Built-in protections guard against overcurrent, voltage spikes, and overheating. UL, FCC, IC, DOE, CEC, and NRCAN certified for safety and global use.

• Power It Up - Fast charging up to 2 devices (2x USB-C) with power distributed dynamically across each device depending on how much power they each need. Charge a single device with full power up to 45W
• Fast Charge - Power a mobile device 0-50% in 30min*
• Laptop Charging - Charge a Dell XPS 13, MacBook Air, Chromebook and more
• Compact Design  - Lightweight pocket-sized wall charger, easily fits in tight corners and cramped charging environments, and stows away quickly in travel bags, drawers, purses and pockets saving valuable space.
• GaN Green - Greatly impact your household power usage both in time and consumption. Improved power efficiency using GaN II technology.
• Shielded Protection - Temperatures are monitored regularly within the charger to ensure power output is adjusted to keep your devices and environment safe. Overcurrent and overvoltage damage are a problem of the past.

Part #: 901535
Total Wattage: 45W
Input: 100-240VAC 50-60Hz 1.0A Max
No Load Power Consumption: 0.3W

Outputs

Single Port:
USB-C1:
PD 5V3A, 9V3A,12V3A, 15V3A, 20V/2.25A (45W)
PPS:3.3V-16V/3A (45W Max)

USB-C2:
PD 5V3A, 9V3A, 12V23A,15V3A, 20V/2.25A (45W)
PPS:3.3V-16V/3A (45W Max)

Dual Port:
USB-C1:
PD 5V3A, 9V2.77A (25W)
PPS: 3.3-5.9V/3A, 3.3V-11V/2.75A (25W Max)

USB-C2:
PD 5V3A, 9V2.2A (20W)
PPS: 3.3-5.9V/3A, 3.3V-11V/2A (20W Max)

Ports: (2) USB-C

Protections:
Over Current Protection
Over Voltage Protection
Over Load Protection
Short Circuit Protection
Over Temperature Protection

Recommended Operation Temperature Range:
0 ~ 25°C / 35 ~ 77°F

Efficiency:
≥ 78.49% @3.3V
≥ 81.61% @5V
≥ 84.63% @9V
≥ 84.59% @11V

Certification: UL, FCC, IC, DOE, CEC, NRCAN

Dimensions LxWxH: 1.50 x 1.73 x 1.59 inches

Weight: 2.7oz

45W GaN II Power Adapter
User Manual

1-Year Limited

For additional warranty information, please visit the VisionTek Warranty page.
