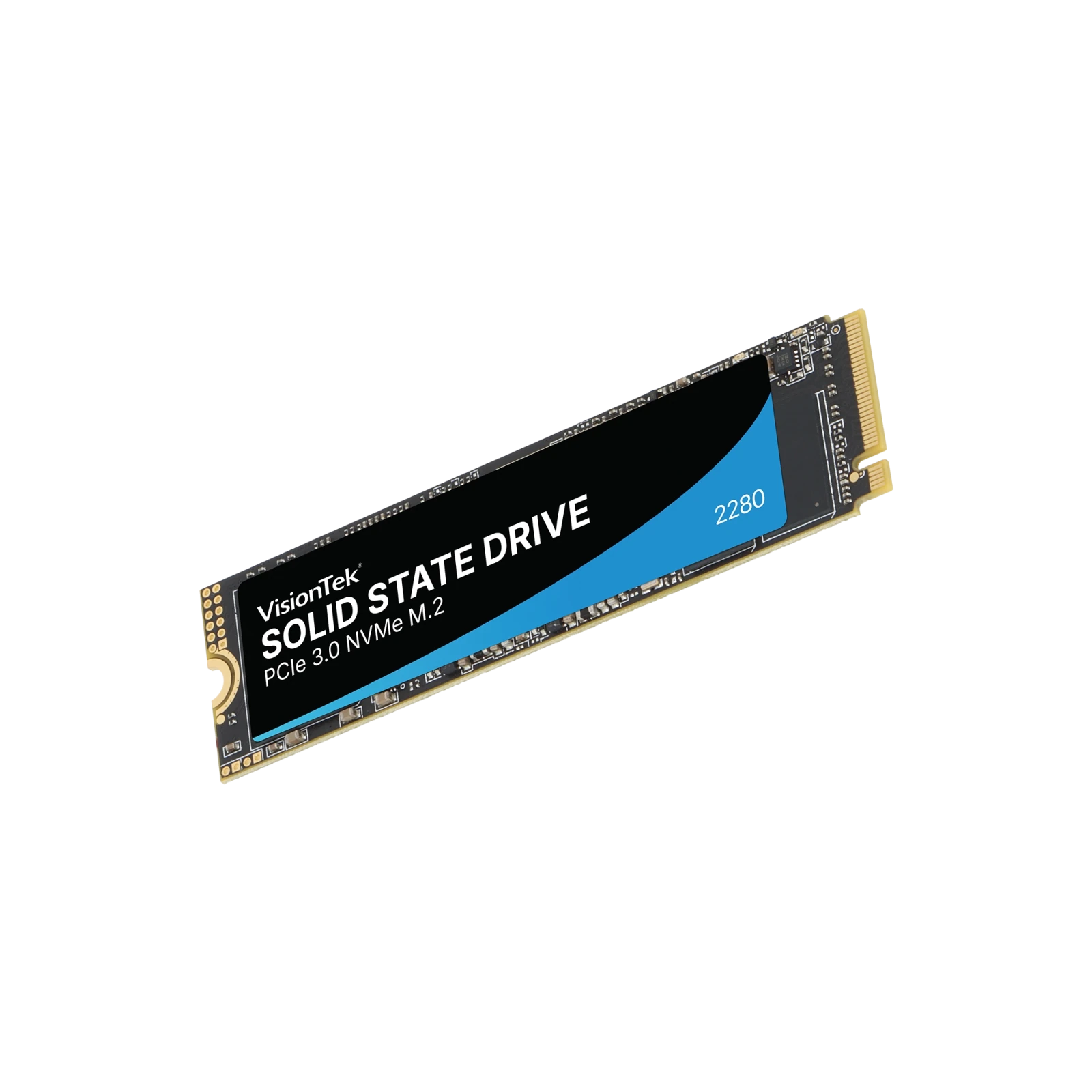

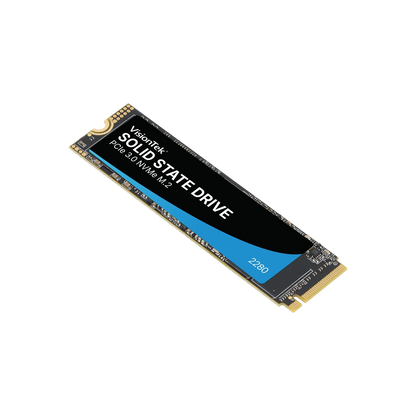

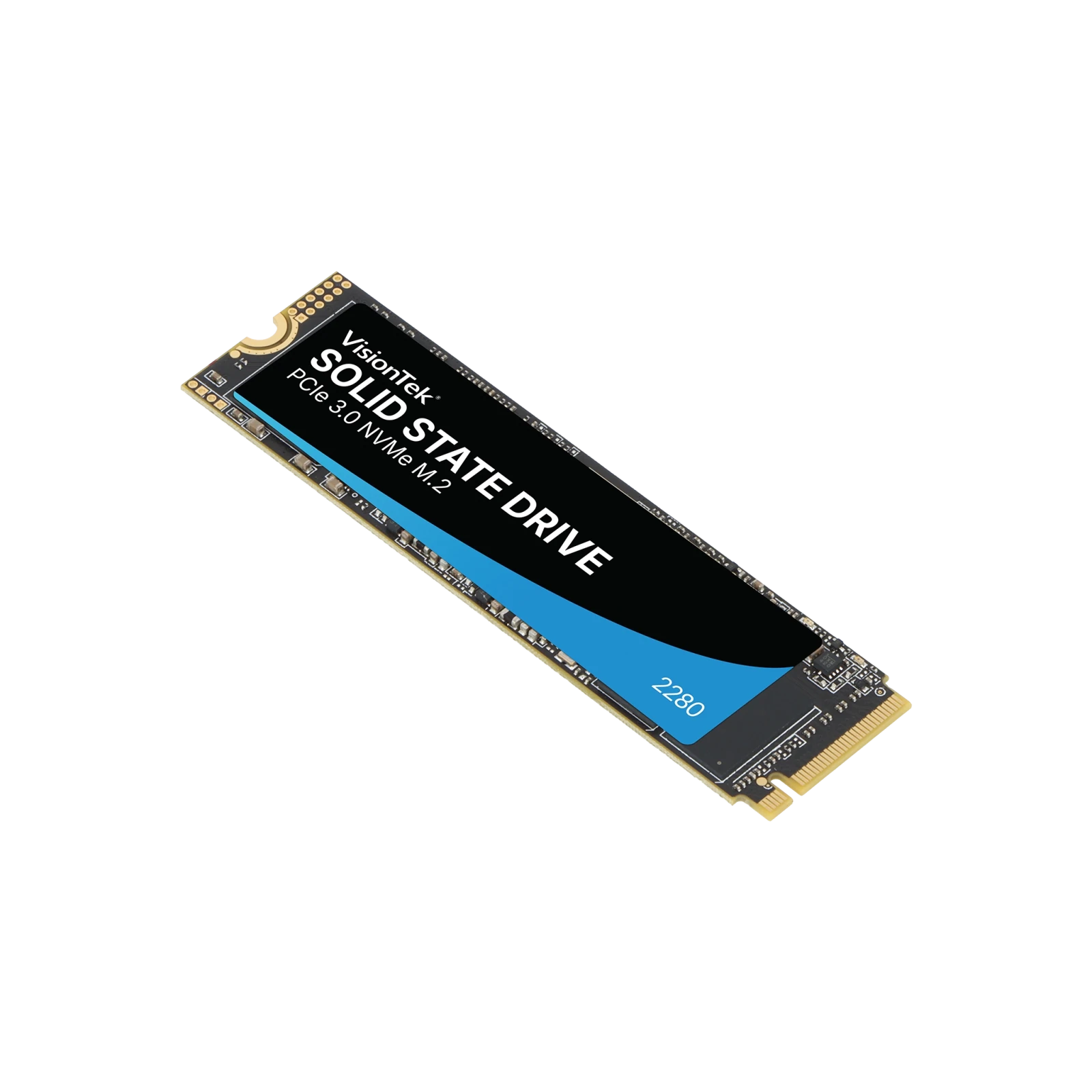

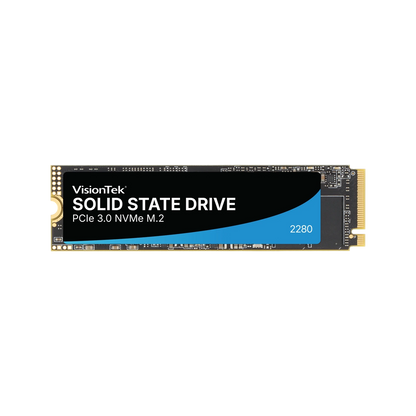

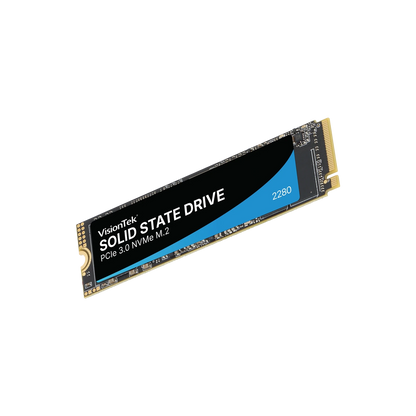

VisionTek SSD - 1TB Pro XPN M.2 NVMe 2280 | PCIe 3.0 x4 | Up to 3400MB/s Read

• SLC caching accelerates burst performance
• Static Data Refresh technology ensures data integrity
• Data shaping increases endurance
• Intelligent garbage collection routines for advanced free space management
• NVMe Deallocate function support (NVMe equivalent of TRIM command)
• S.M.A.R.T. support
• Performance optimized LDPC engine
• PCIe Gen3 x4 NVMe 1.3 interface
• Temperature sensor
• Industry-standard 512-byte sector support
• RoHS-compliant package
• 3D NAND

PCIe Gen3 2280 M.2 Slot
*Compatible with PCIe Gen4, PCIe Gen5

Connection Type: M.2 (M Key)

Form Factor: M.2 2280

Controller: Silicon Motion SM2262EN

Flash Type: 3D NAND

Security: NVMe Security Erase support

Reliability:
MTBF: 1.5 million device hours*
Low Density Parity Check (LDPC) ECC
Static and dynamic wear leveling
Uncorrectable Bit Error Rate: ≤1 sector per 1015 bits read

Electrical / Mechanical:
+3.3VDC (±5%) power supply
Power Consumption: up to 5.6W (Active), 0.5W (Idle)
M.2 2280: 22.0 mm x 80.0 mm
Weight: 7g

Environmental:
Operating temperature: 0-70°C
Non-Operating temperature: -40-85°C
Operating humidity: 5-95% relative
Shock: 1500G/0.5ms
Vibration: 2-500Hz, 3.1G

*Based on Telcordia SR-332 reliability prediction procedure.

1TB Pro XPN 2280 M.2 SSD

3 Year Limited Warranty*

- A period of 3 years from purchase date with registration -AND-
- (901307 / 1TB) - Up to 468TB Maximum Total Bytes Written (TBW) to flash by capacity -OR-
- Up to 250 insertion/removal cycles to the host

Product must be registered within 30 days of purchase to be covered by the 3 Year Limited Warranty*. Products not registered within 30 days of purchase will default to our 1-Year Warranty period.

To register your product, please visit the Warranty Registration page.

For additional warranty information, please visit the VisionTek Warranty page.
