VT2510 USB-C Docking Station - Multi Display MST Dock 100W Power Delivery
The VisionTek VT2510 docking station is the perfect blend of style, design, and performance. Its simple plug-and-play feature allows you to easily extend your Windows, Mac, or Chrome laptop system into a complete workstation. With 11-in-1 options, this versatile docking station is suitable for both personal and professional use, making it an ideal choice for nearly any environment.
- Supports up to 3 Displays (HDMI or DP) via DP Alt Mode
- USB-C connection to host system
- 2x DP, 1x HDMI, 4x USB-A Ports, Audio, Ethernet, SD Reader, Kensington Lock
- 100W Power Delivery from included Power Supply
VT2510 - Docking Station
Key Features:
- Compatible with USB-C systems via DP Alt Mode
- Compatible with M1 Mac
- Supports up to 3 external displays

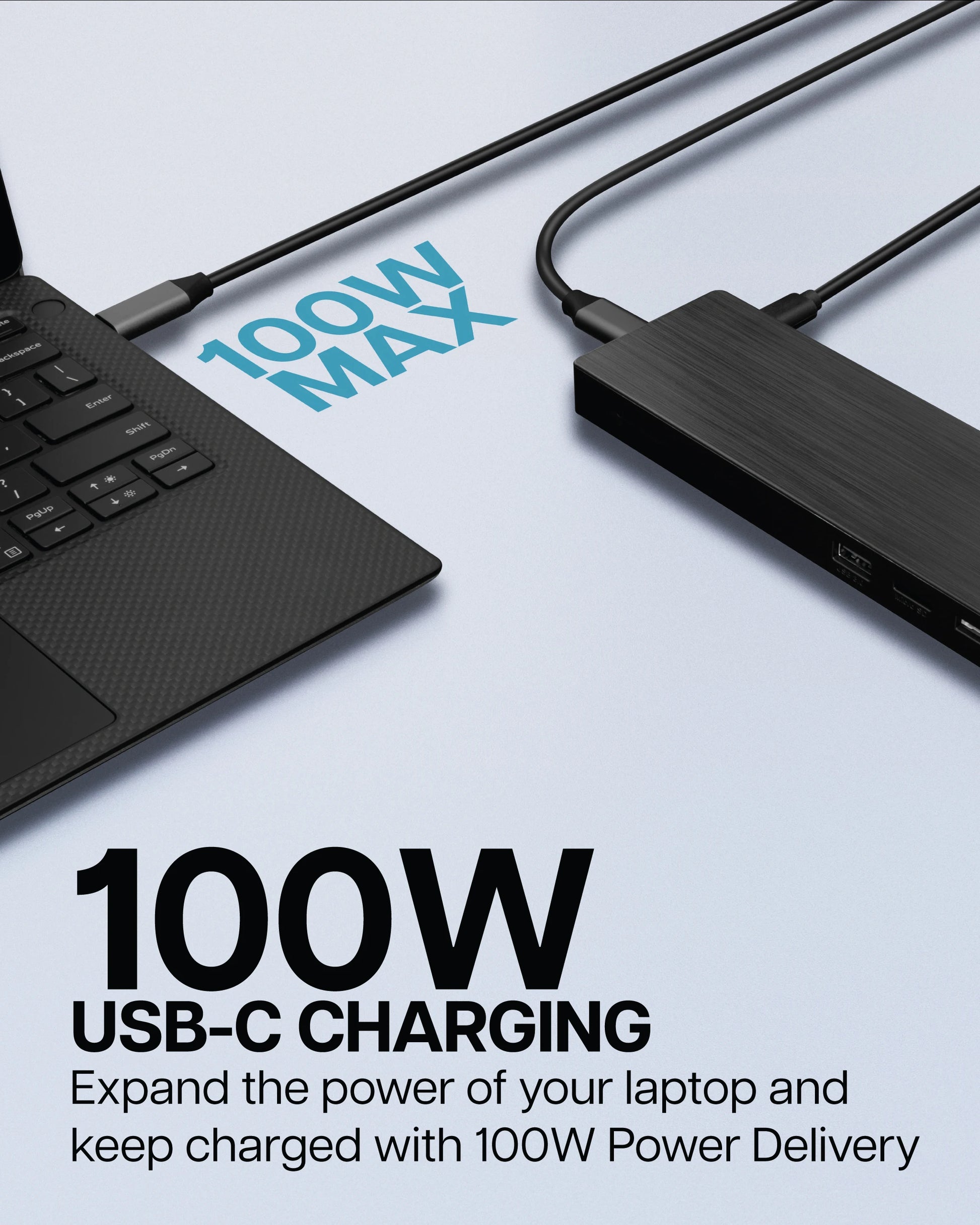

- Up to 100W USB-C Power Delivery*
- 2 x USB 3.1 Gen 1 Ports 5Gbps
- 2 x USB 2.0 Ports 480Mbps
- 2 x DisplayPort 1.4
- 1 x HDMI 2.0
- RJ45 Gigabit Ethernet Port
- Enterprise Features
o Wake on LAN
o MAC Address Pass-Through
o PXE Boot
*USB-C Power Supply included
Boost your productivity with the VisionTek VT2510 USB-C Docking Station - the ultimate power passthrough solution for Windows, Mac and Chrome laptop systems. This plug and play docking station enables you to effortlessly connect up to three external displays, transfer files and data at lightning-fast speeds of up to 5Gbps, enjoy high-quality audio and charge your mobile devices, all with just a single USB-C connection. Streamline your work setup and take your productivity to the next level with our advanced docking station.

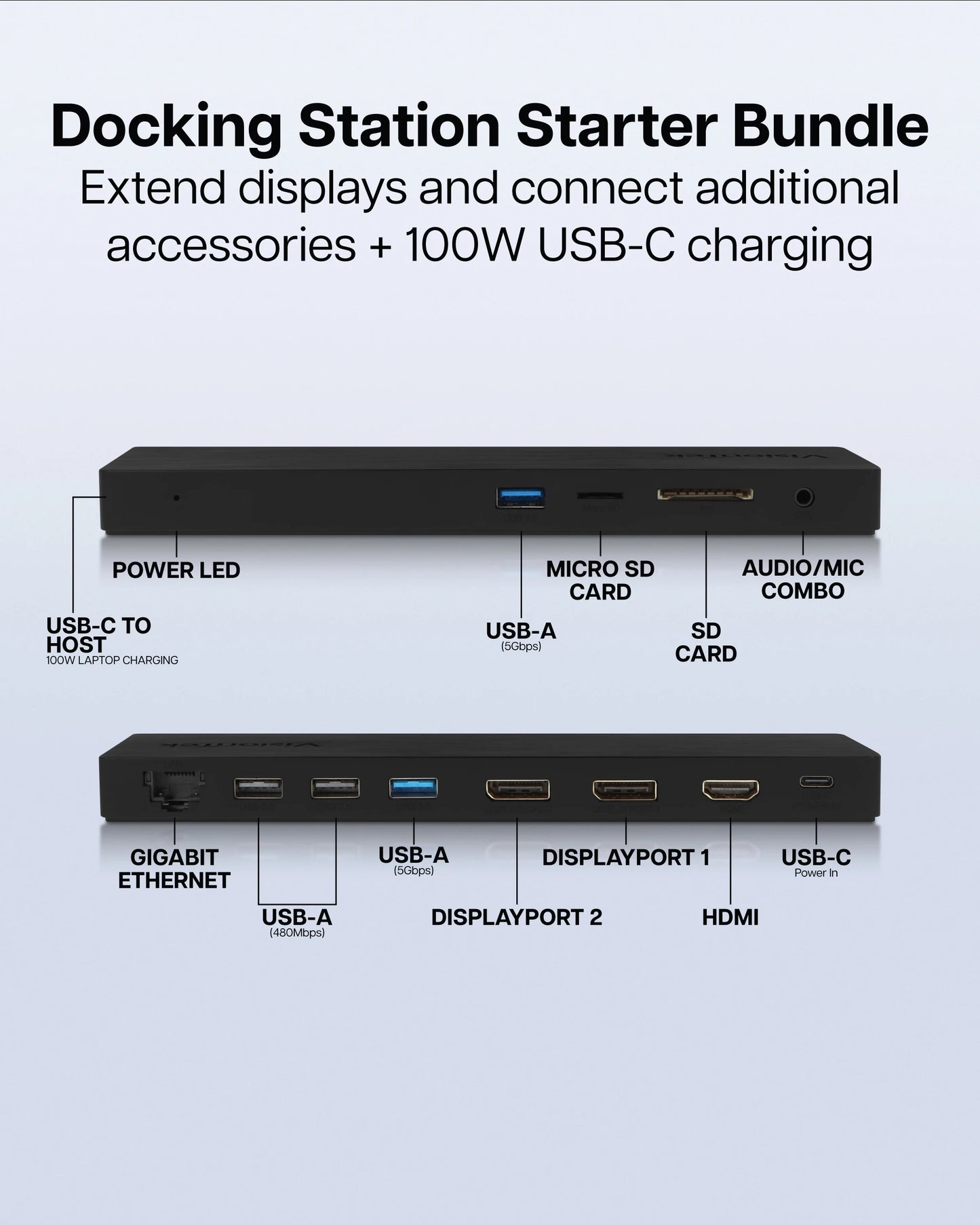

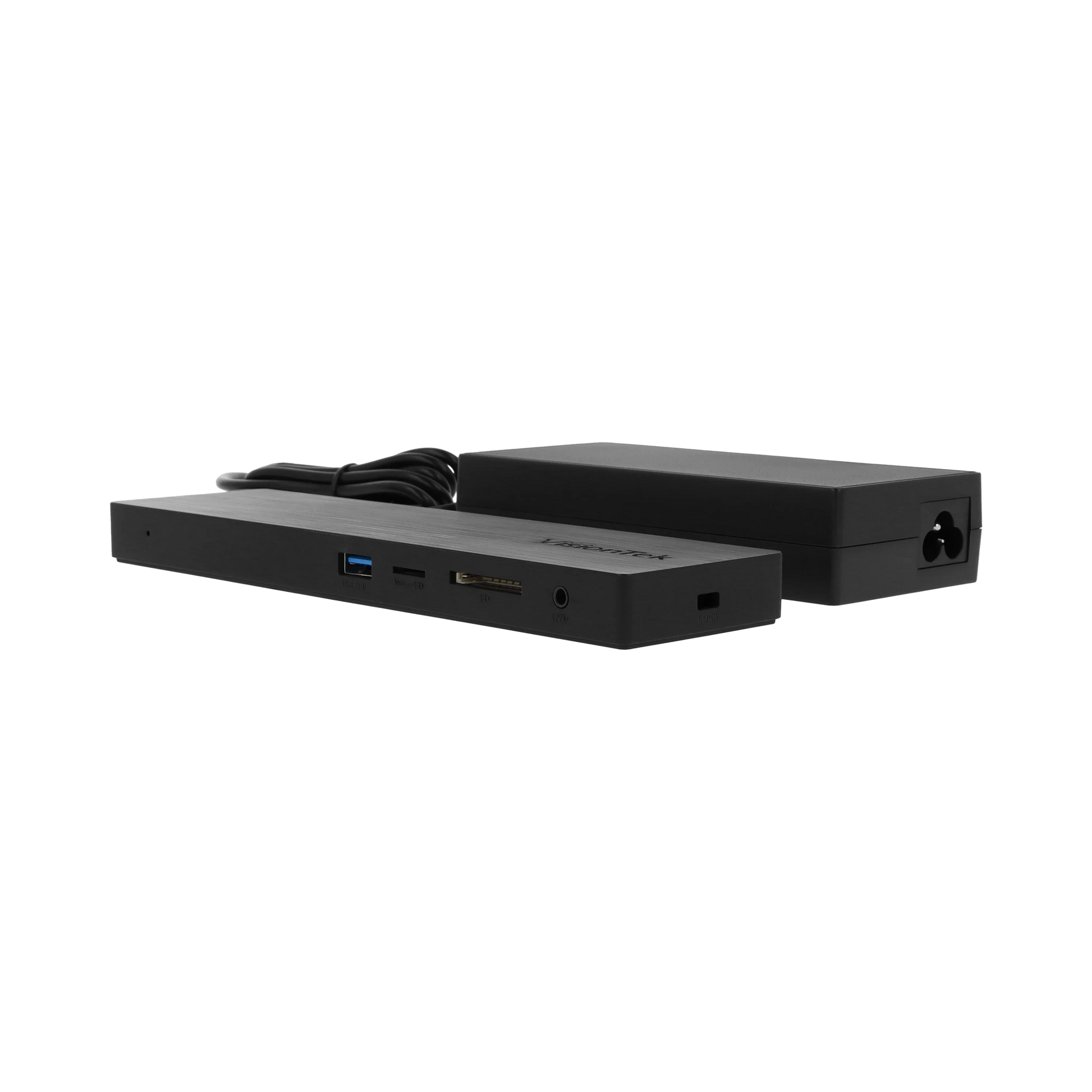

Front Ports:
- 1 x USB 3.1 Gen1 Port
- 1 x MicroSD Card Reader
- 1 x SD Card Reader
- 1 x 3.5mm Audio/Microphone Combo Jack
- Power Indicator Light - Blue LED When Powered On
Side Ports:
- USB-C to System*
- Kensington™ Security Lock Slot
*Must use included USB-C cable
Back Ports:
- Gigabit Ethernet Port
- 2 x USB-A 2.0 Ports
- 1 x USB 3.1 Gen1 Port
- 2 x DisplayPort Ports
- 1 x HDMI Ports
- 1 x USB-C Power Supply Port

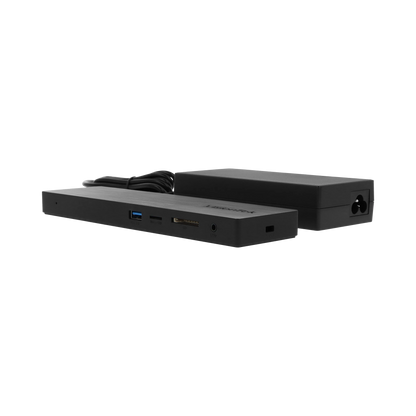

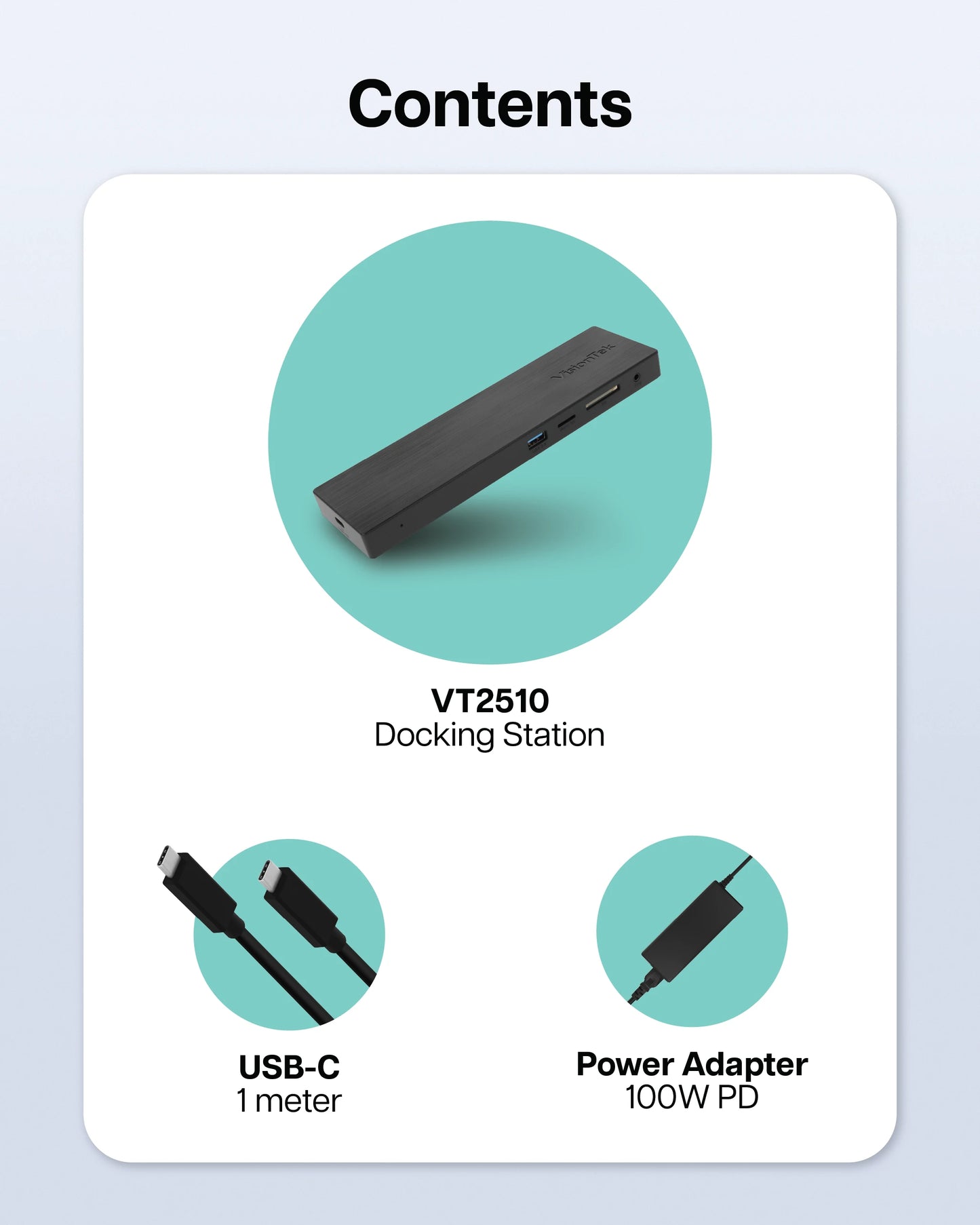

What's In The Box:
- VT2510 Dock
- USB-C to USB-C Cable
- 100W - DC 20V/5A Certified Power Adapter
- User Manual
Display Outputs Supported:
Single Display Support:
DisplayPort: Resolutions up to 3840 x 2160 @ 60Hz (4K)
HDMI: Resolutions up to 3840 x 2160 @ 60Hz (4K)
Dual Display Support:
DisplayPort + DisplayPort: Resolutions up to 3840 x 2160 @ 30Hz (4K)
DisplayPort + HDMI: Resolutions up to 3840 x 2160 @ 30Hz (4K)2
Triple Display Support:
DisplayPort + DisplayPort + HDMI : Resolutions up to 1920 x 1080 @ 60Hz (FHD)3

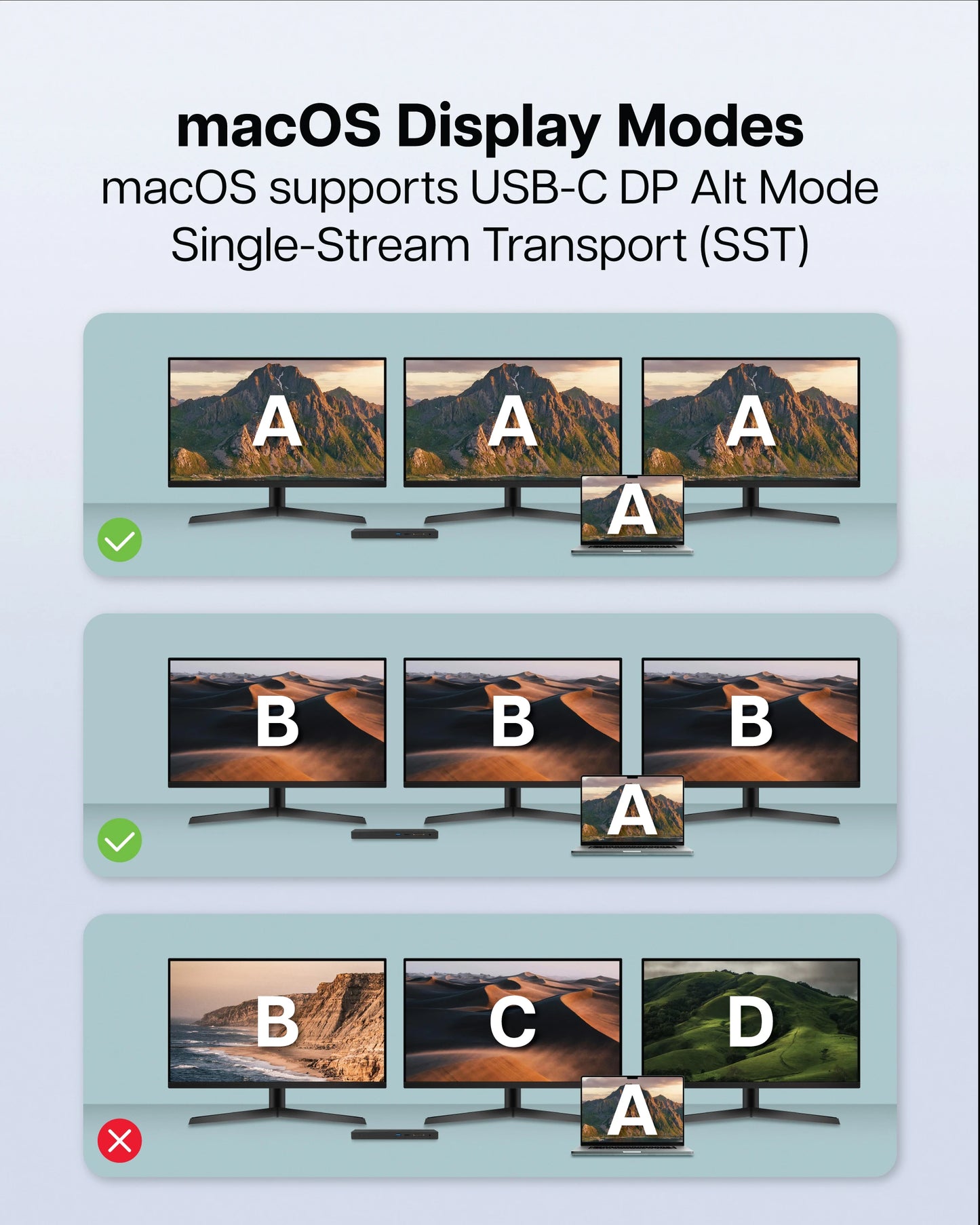

1 macOS systems support one external display extended and one cloned external display
2 Host System must support DP 1.3 HBR3 for 2 displays @ 4K 30Hz

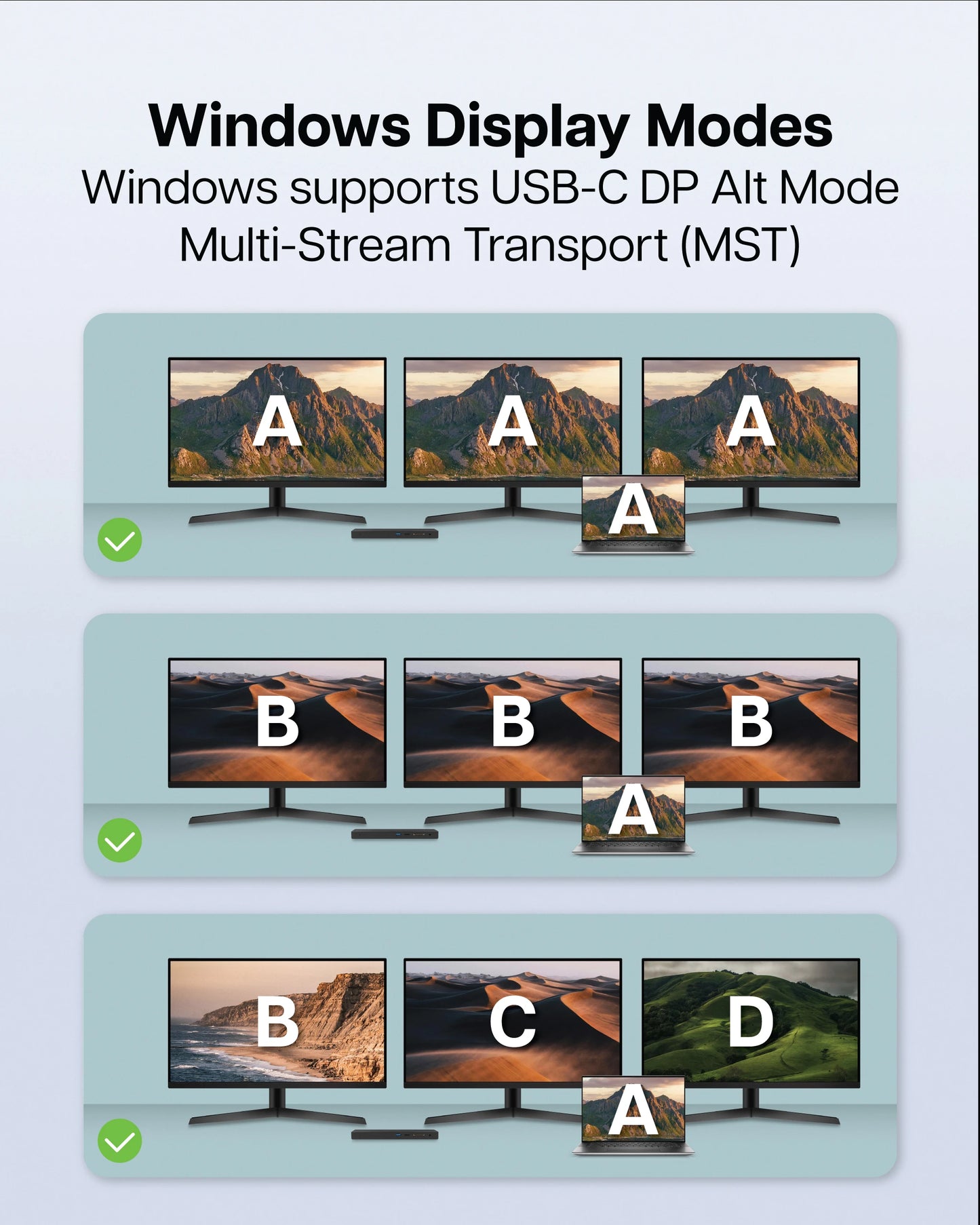

3 Windows systems support up to three external displays extended or cloned
3 Host System must support DP 1.3 HBR3 and have onboard graphics that supports MST for 3 external displays at 1080P
| 1 Display | 2 Displays | |
|---|---|---|
| Display Connection | DP or HDMI | DP + DP or DP + HDMI |
| Host System DP 1.2 / 1.3 HBR2 (with or without MST support) | 3840 x 2160 @ 30Hz | 2560 x 1440 @ 60HZ (DP) +
1920 x 1080 @ 60Hz (HDMI) |
| Host System DP 1.3 HBR3 | 3840 x 2160 @ 60Hz | 3840 x 2160 @ 30Hz |
| Host System DP 1.3 HBR3 MST | 3840 x 2160 @ 60Hz | 3840 x 2160 @ 30Hz |
| Windows 10 Duplicate | Yes | Yes |
| Windows 10 Extended | Yes | Yes |
| macOS Duplicate | Yes | Yes |
| macOS Extended1 | Yes | 1 Extended + 1 Cloned |
1 M1 Mac systems support one external display extended or one cloned external display
1 macOS systems support one external display extended and one cloned external display
