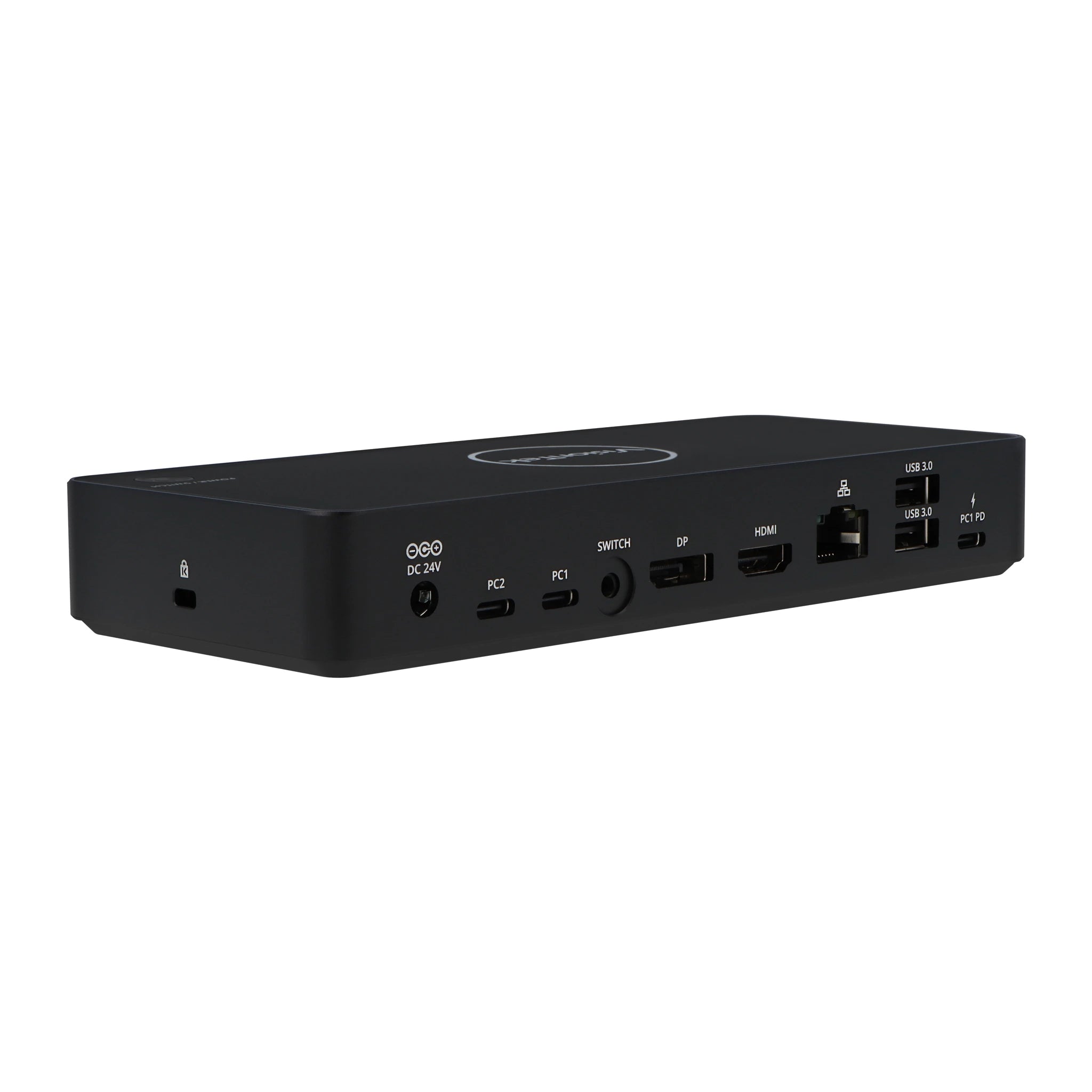

VT2900 USB-C Dual System KVM Docking Station with 100W Power Delivery

Plug and Play no drivers required

VT2900 Manual EN (Size: 507 KB)

VT2900 Manual FR (Size: 511 KB)

No, the VT2900 will only connect to systems with a USB-C port that supports DP Alt Mode and does not include a USB-C to USB-A cable/adapter.

Quick press the Power / Switch button on the top of the dock or quick press the included 3.5mm switch button.

No, all connected displays and accessories connect to the selected host system.

No, the VT2900 will require a direct USB-C connection that supports DP Alt Mode.

Yes, the VT2900 is compatible with laptops featuring a Thunderbolt™ 3 or Thunderbolt™ 4 USB-C port.

The VT2900 docking station can provide up to 100W of power delivery to PC2 with the included power adapter. For power delivery 2 PC1 an additional USB-C power adapter up to 100W is required.

When using USB-C power delivery from the VT2900 connect all peripherals and displays to the dock then connect it to your system. Once the dock is recognized and running then connect your USB-C power supply.

The VT2900 charges via USB-C Power Delivery, to PC2 with the included power supply, verify that your host system supports this feature. To charge PC2 an additional USB-C Power adapter is required.

If attaching a Third-Party USB-C power supply to the power pass-through port on the docking station, it may be providing less power than the proprietary power supply. If your computer remains charging but received this message it is trickle charging. This may mean it is providing enough power to diminish the speed at which the battery is used, or it is charging at a slower pace than normal.

The display arrangement can be adjusted in your operating system’s Display Settings.

Windows will preset identifiers to the attached displays. If they match the physical orientation this identifier does not interfere with the arrangement.

1) Ensure the displays are not set to disconnect by default in Windows Display Settings.
2) If the cables connecting the docking station to monitors are making signal type translations, please use active type adapters/cables.
3) Verify that your host system supports USB-C DP Alt Mode

Power and Sleep Settings > Additional Power Settings > Choose what closing the lid does > Do Nothing (On battery and/or Plugged in)

System Preferences > Energy Saver > Slider set to Never

Yes, the VT2900 requires the included power supply to be connected.

Power Delivery implies the docking station is both powered and providing power to the attached laptop while Power Passthrough implies the docking station does not require a power supply to operate but can pass through power from a third-party power supply.

No, the VT2900 operates utilizing USB-C with DisplayPort (DP Alt Mode).

Windows 11, Windows 10, Windows 8.1, Windows 7, macOS 10.12 or later

Yes, however, please use an active adapter when making signal type translations.

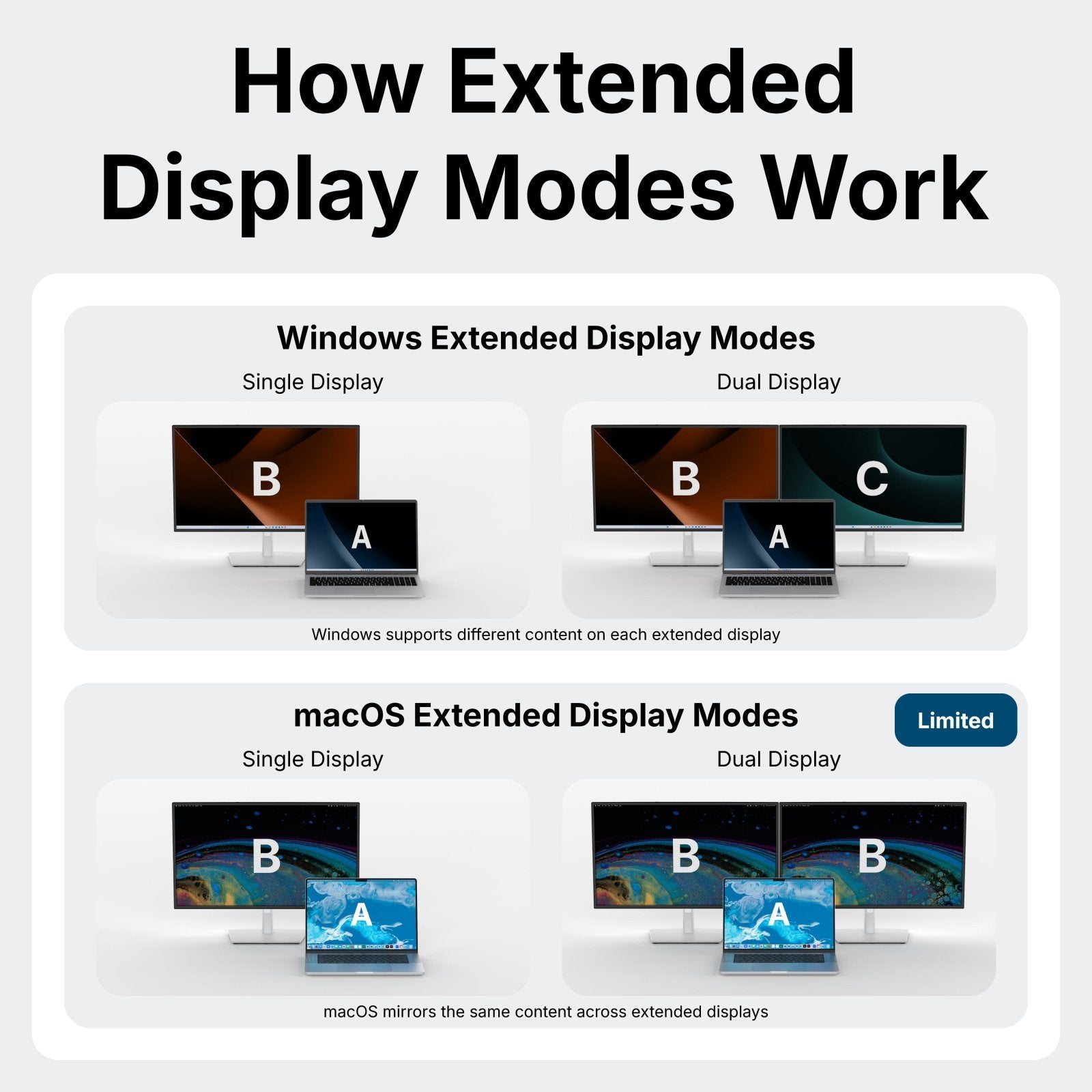

Yes, the VT2900 is compatible with Apple M1 chipset macOS systems. However, display configurations are limited to a single extended while a secondary display is cloned.

Yes, however, please use an active adapter when making signal type translations.

Yes, the VT2900 will operate once attached to the host system. This device does not require a driver installation.

Yes, the PC1 USB-C power pass-through port allows for the connection of a USB-C power supply for laptop charging to PC1.

No, the VT2900 does not support ultrawide resolutions.

No, the VT2900 does not support this DisplayPort feature.
