Premium Performance Without the Premium Price.

Description

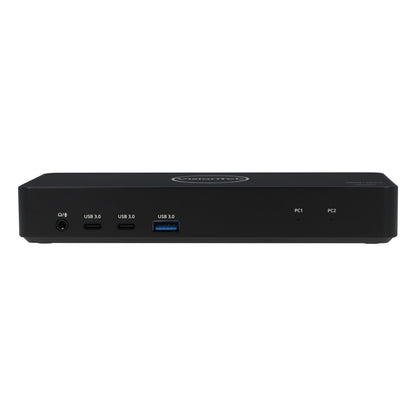

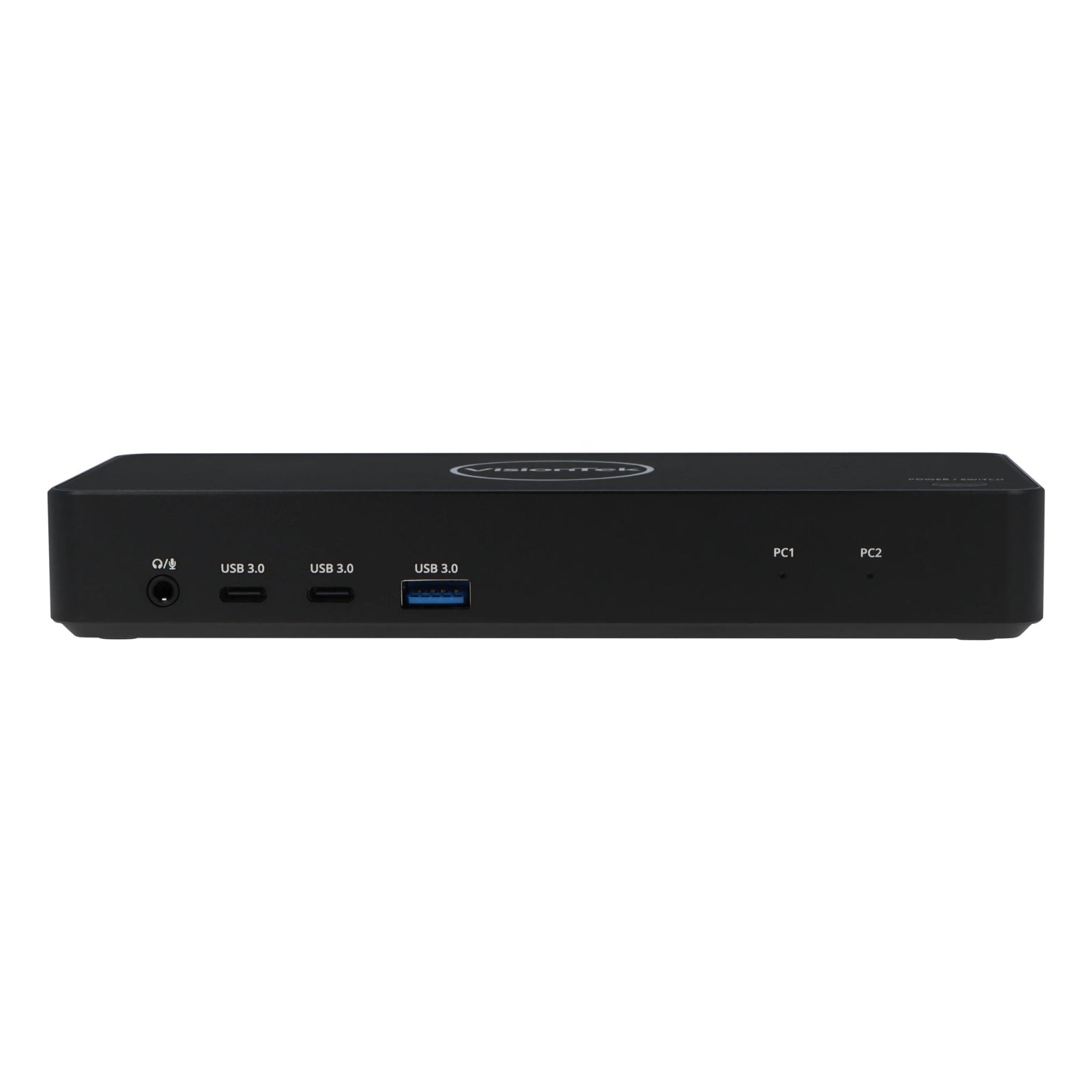

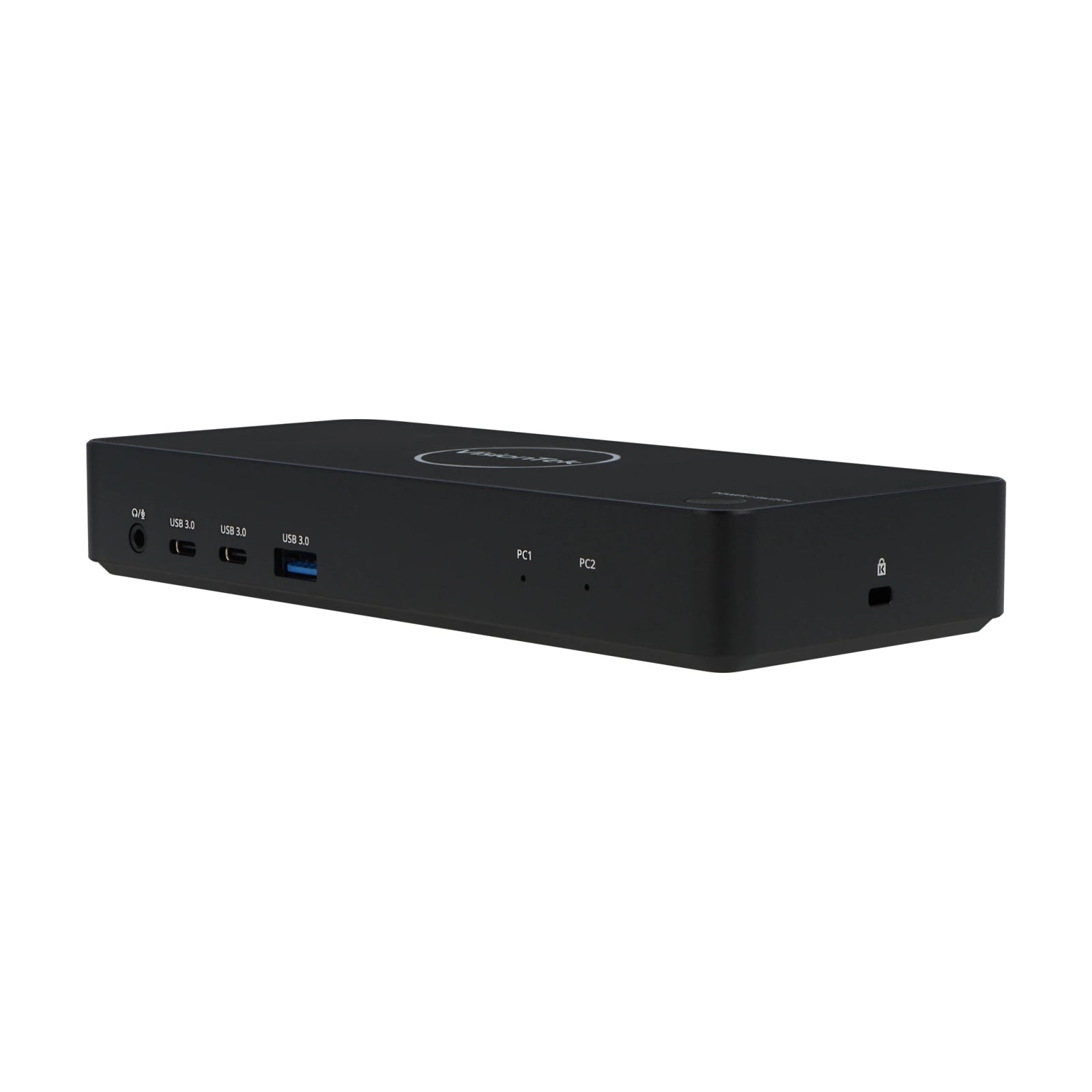

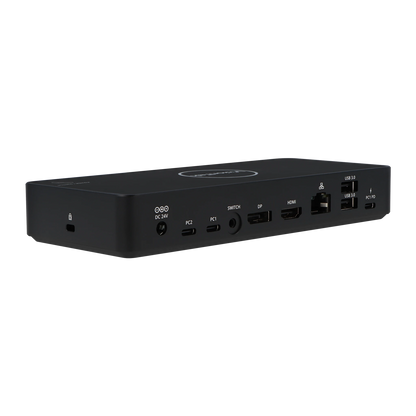

The VisionTek VT2900 USB-C KVM Docking Station simplifies multi-system setups by allowing you to switch between two laptops while sharing dual displays, USB peripherals, Ethernet, and audio. Supports 100W charging for each system with a 130W included power adapter. Dual 4K @ 60Hz display support via DP Alt Mode, multiple USB-A/C ports, and 5Gbps data transfer deliver seamless productivity for business, creative, and hybrid work environments. Compatible with Windows, macOS, Thunderbolt 3/4/5, and USB4.

  • Supports up to 2 Displays via DP Alt Mode
  • USB-C connection to host system

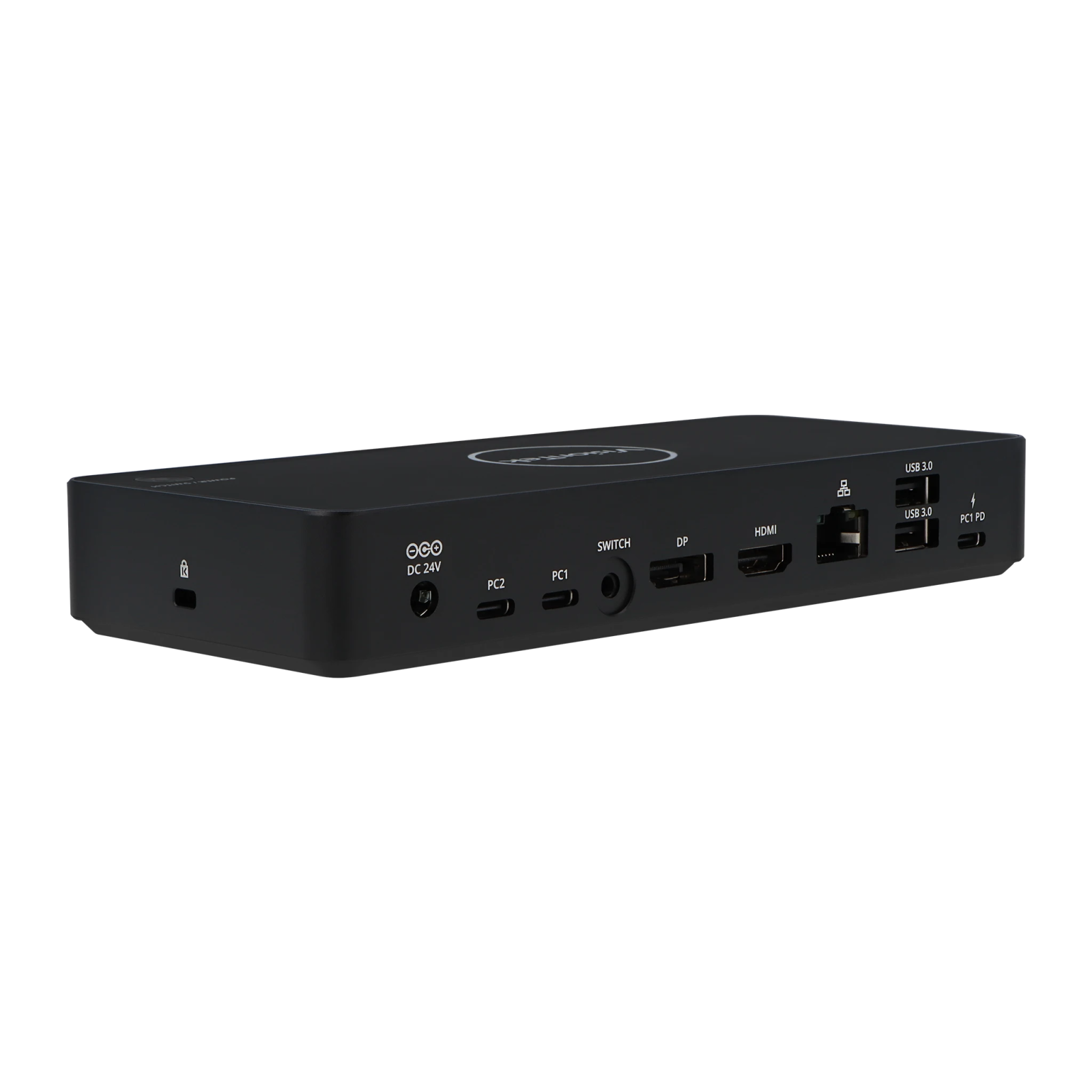

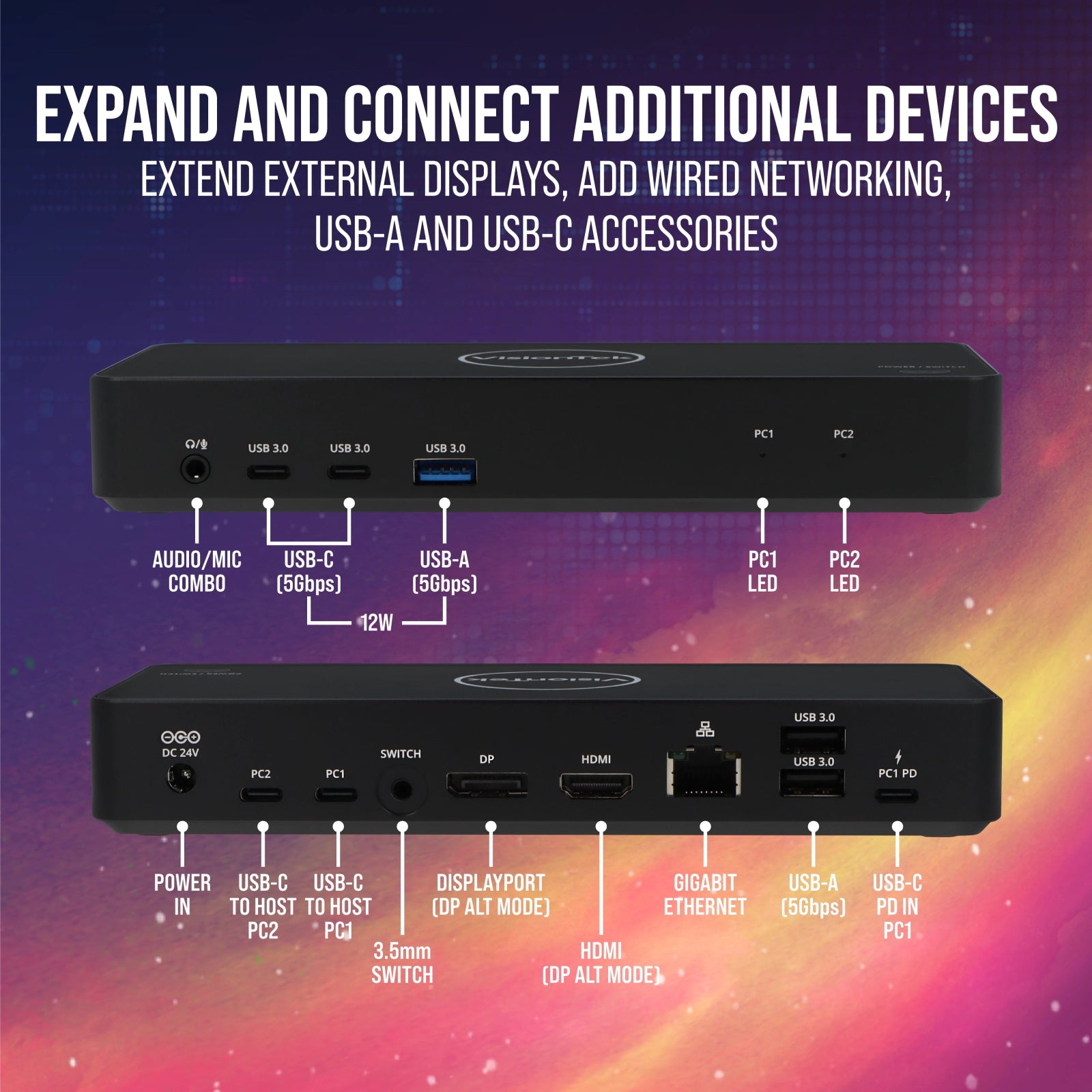

  • 1x DP, 1x HDMI, 3x USB-A 5Gbps Ports, 2x USB-C 5Gbps Port, Audio, Ethernet, Kensington Lock
  • 100W Power Delivery to PC2 from included Power Supply
  • Up to 100W Power Delivery to PC1 from additional USB-C Power Adapter (Not Included)
Key Features

Compatible with USB-C, USB4 and Thunderbolt 3 / 4 / 5
USB-C DP Alt Mode

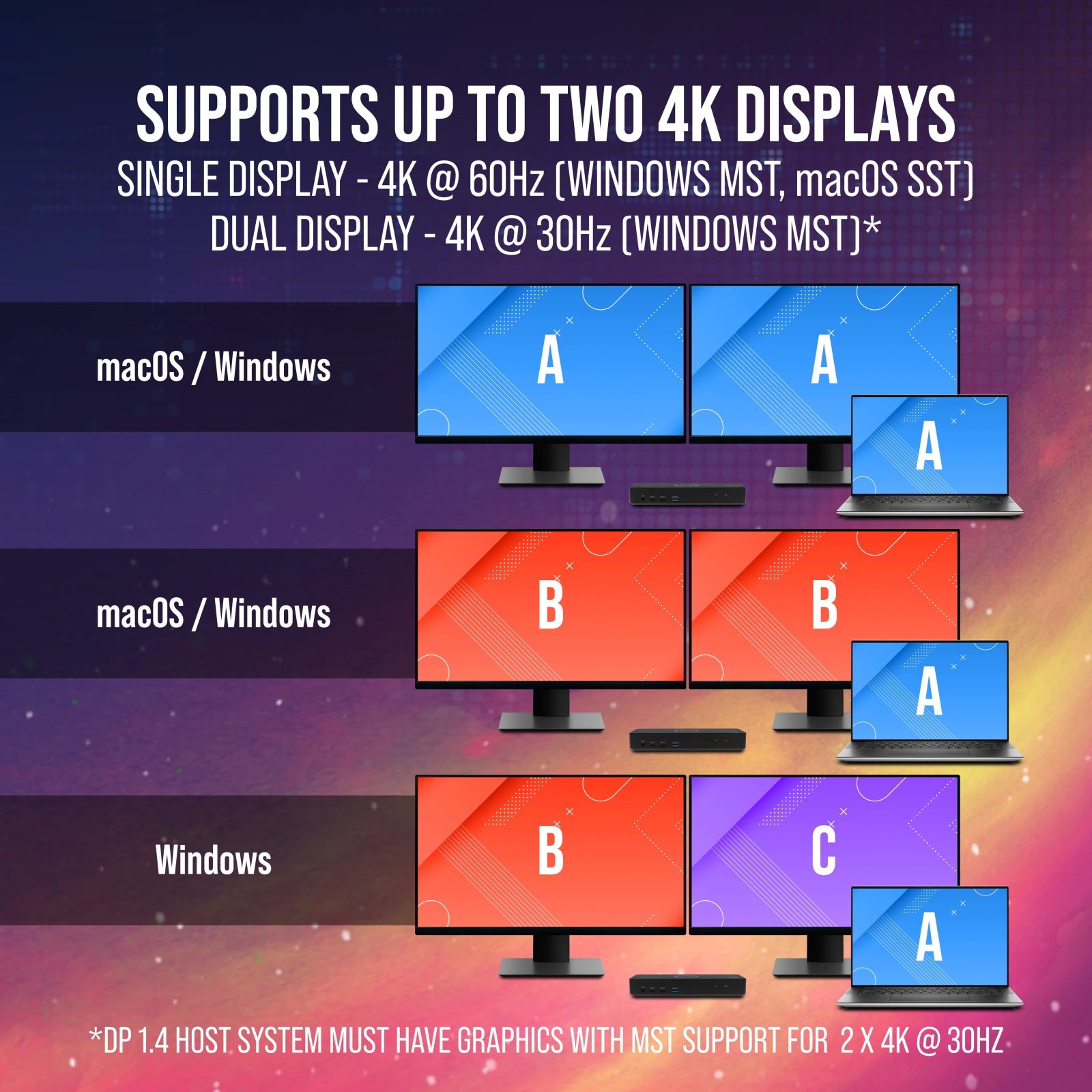

Extend up to 2 external displays

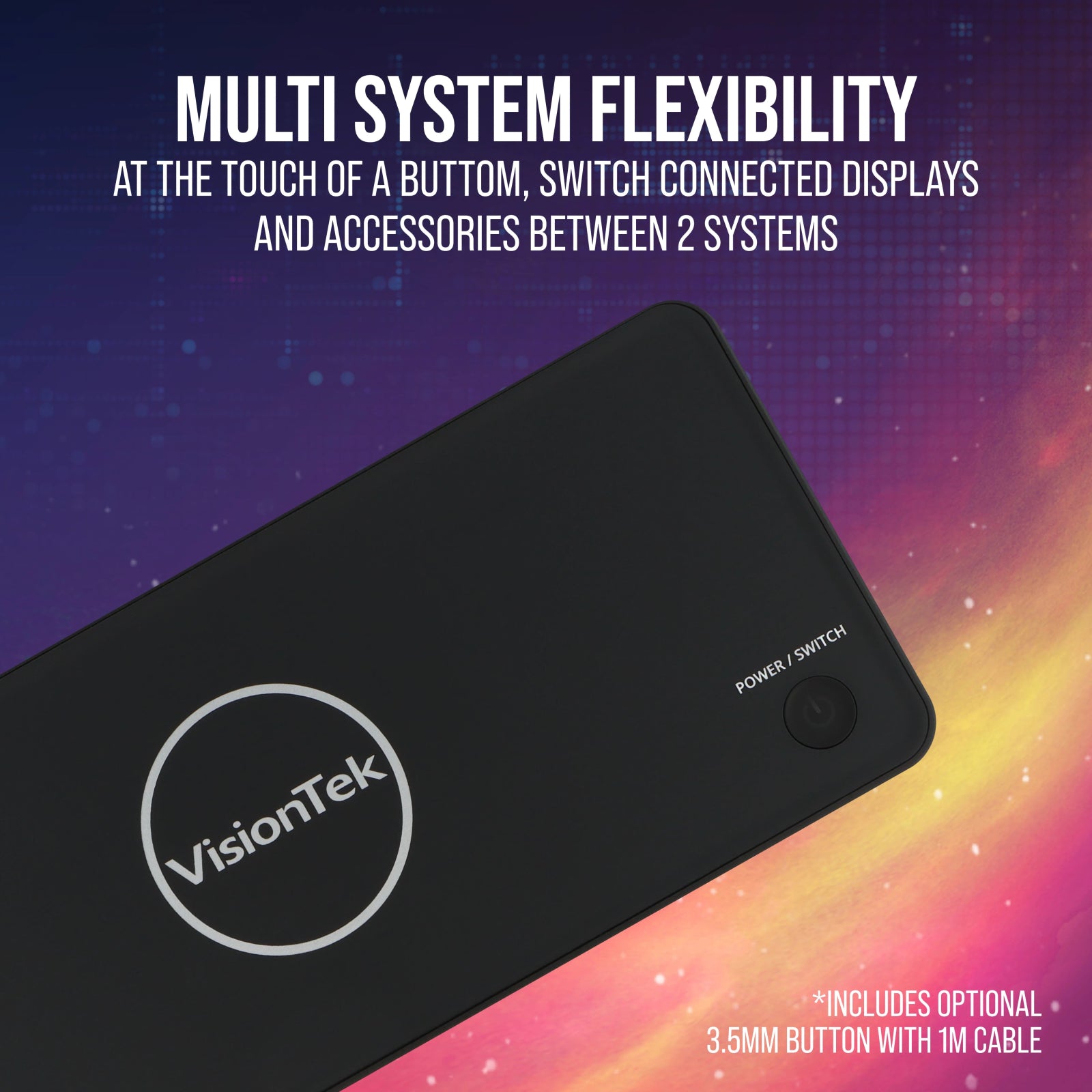

Connect and switch display, keyboard, mouse and accessories between 2 systems

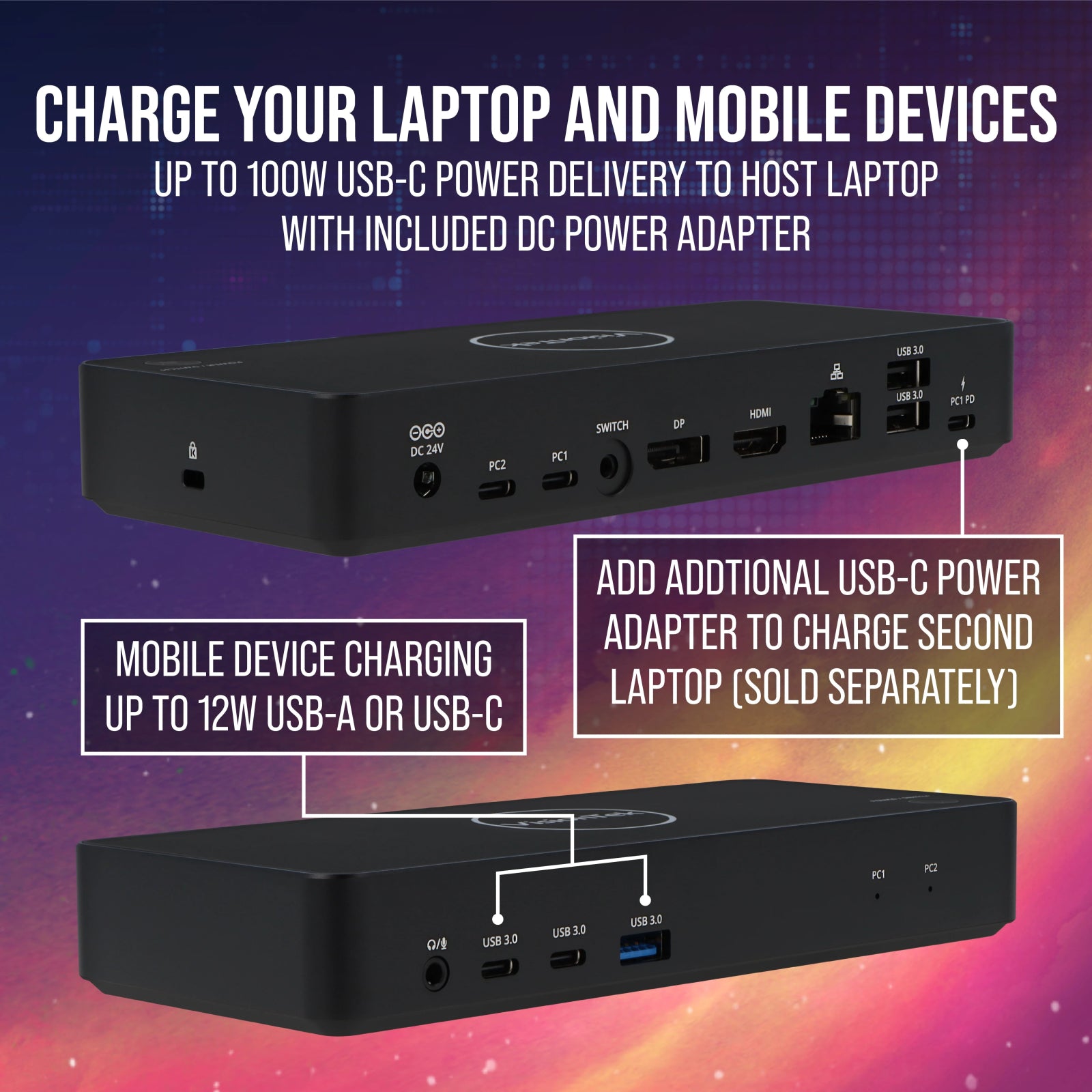

Charge your laptop up to 100W USB-C Power Delivery

*To charge 2 laptops at the same time an additional USB-C charger is required. Use your laptops USB-C power adapter or 100W GaN Charger + USB-C 100W Cable

System Requirements

Operating Systems:
Windows 11
Windows 10
Window 8.1
Windows 7
macOS 10.12 and later

System Support Requirement:
USB-C DP Alt Mode for video output
USB-C Power Delivery for Charging
MST compatibility for multi-display support

Dock to System Connection:
USB-C
USB4
Thunderbolt 3
Thunderbolt 4
Thunderbolt 5

Technical Specifications

Part #: 901532
Dock Connection: USB-C
Display Technology: DP Alt Mode
Power Adapter: 130W - DC 24V/5.41A
Power Delivery: Up to 100W
Displays Supported: Up to 2
Maximum Resolution Supported: 2 x 4K @ 60Hz (3840 x 2160)

Video Interfaces:
(1) DP 1.4
(1) HDMI 2.0

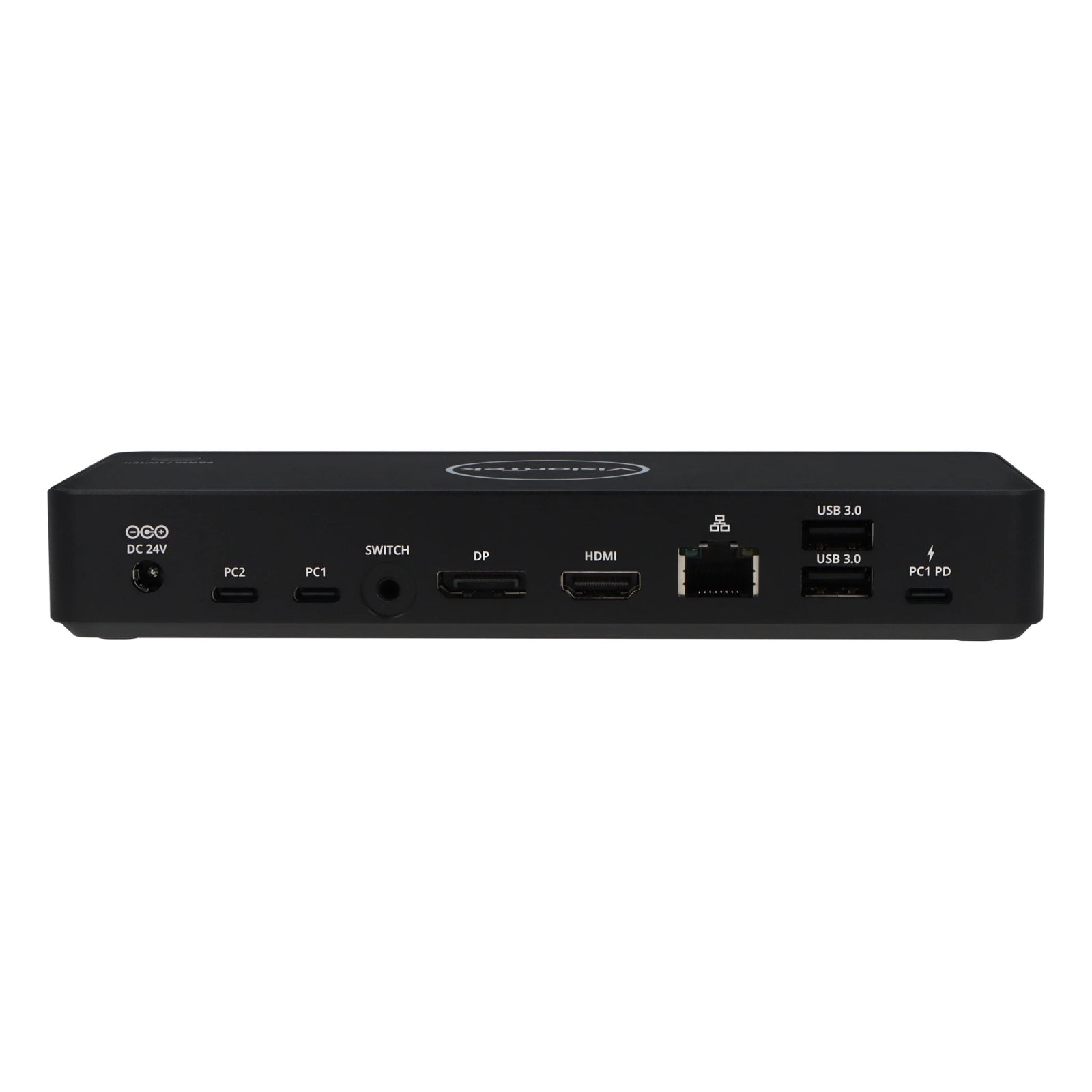

Ports:
(3) USB-A 5Gbps (Front Port BC 1.2 12W Charging)
(2) USB-C 5Gbps (Front Ports BC 1.2 12W Charging)
(1) 3.5mm Mic / Audio Combo
(1) 3.5mm Switch Port
(1) RJ45 Gigabit Ethernet

Cable Length: 1.0m - USB-C
Dimensions LxWxH: 7.28 x 3.11 x 1.14 inches
Weight: 8.8oz

What's In The Box

VT2900 Dock
2x USB-C Cable (1m)
130W - DC 24V/5.41A Power Adapter
3.5mm Toggle Switch
User Manual
