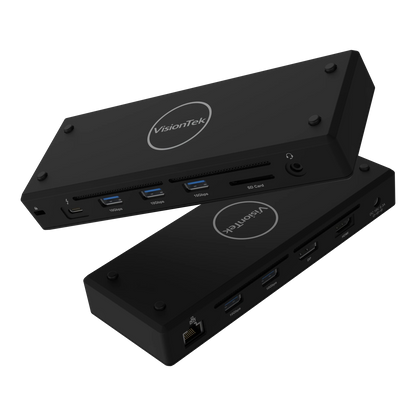

VisionTek VT5400 Dual 4K Docking Station 80W Charging (Thunderbolt 4, USB-C)

No drivers required

VT5400 User Manual EN (577 KB)

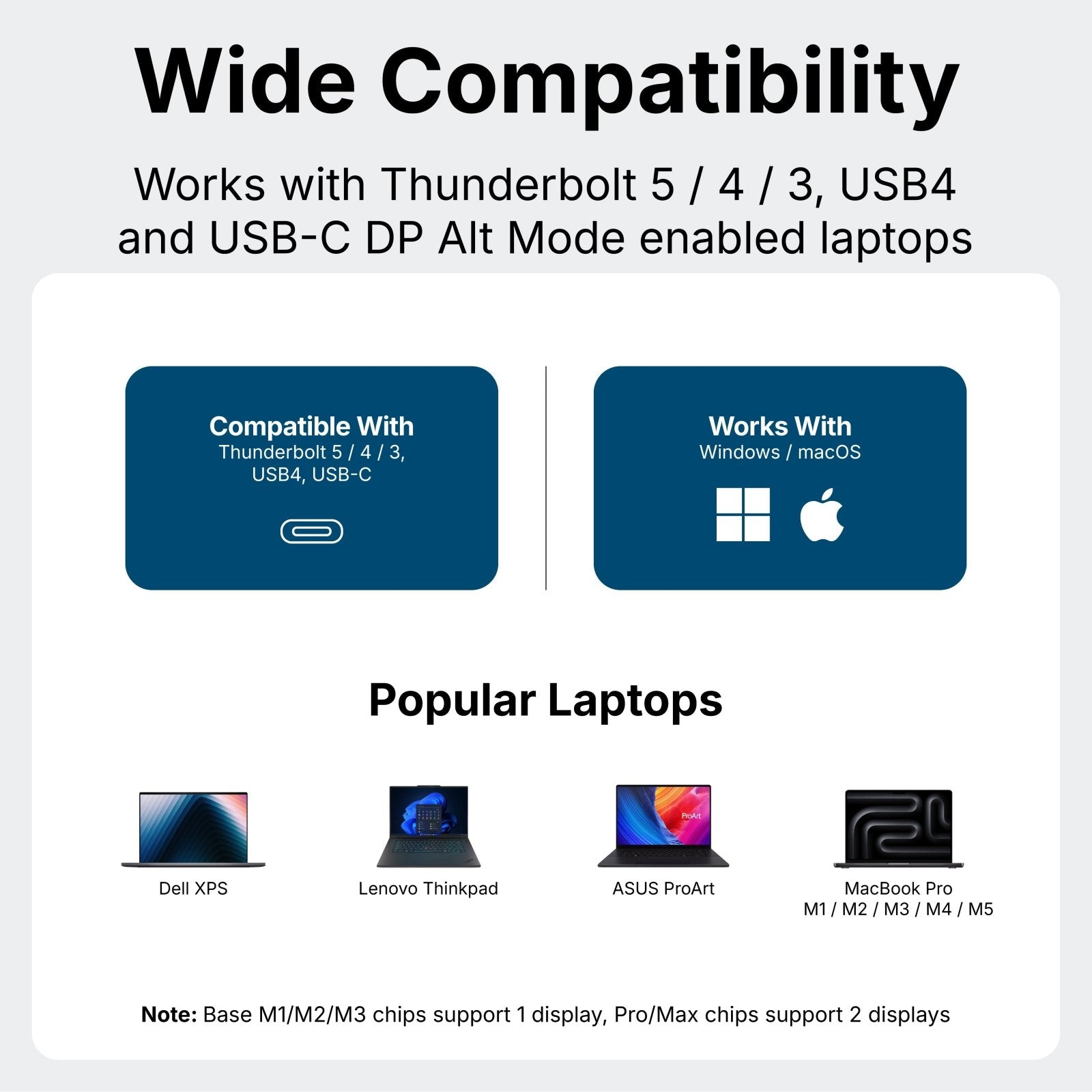

The VT5400 docking station does not require drivers to operate. It will require a laptop featuring USB-C with Thunderbolt™ 3 (or Thunderbolt™ 4).

No, the VT5400 is only compatible with Thunderbolt™ 3 (or Thunderbolt™ 4) systems.

The Thunderbolt Control Center can be located in your system tray.
*Or found on via the following mapping: C:\ProgramData\Microsoft\Windows\Start Menu\Programs\Thunderbolt™ Software

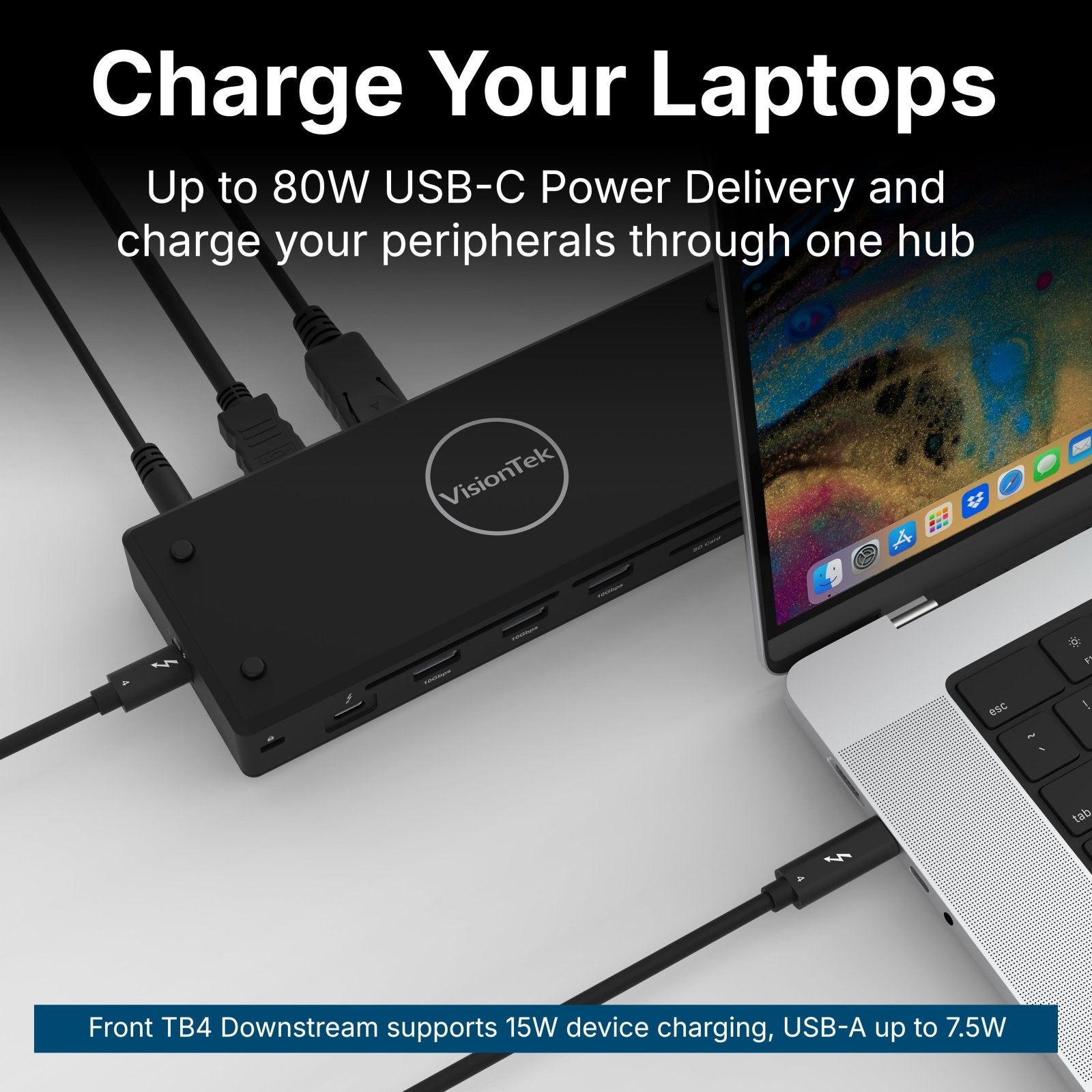

The VT5000 docking station can provide up to 80W of power delivery via USB-C.

The VT5400 can only provide 80W of power delivery. Check the proprietary power supply recommended wattage.

If your computer remains charging but received this message it is trickle charging. This may mean it is providing enough power to diminish the speed at which the battery is used, or it is charging at a slower rate than normal.

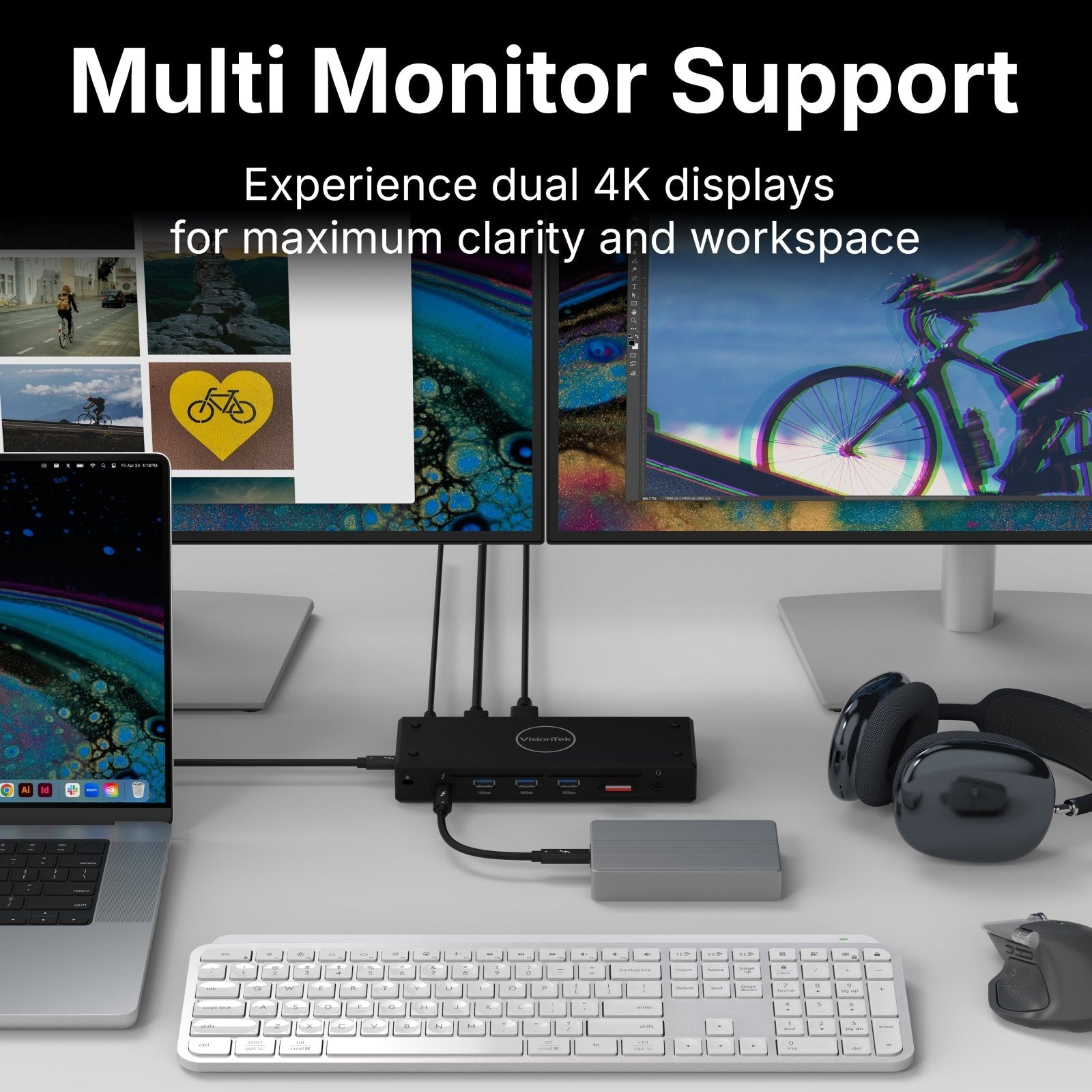

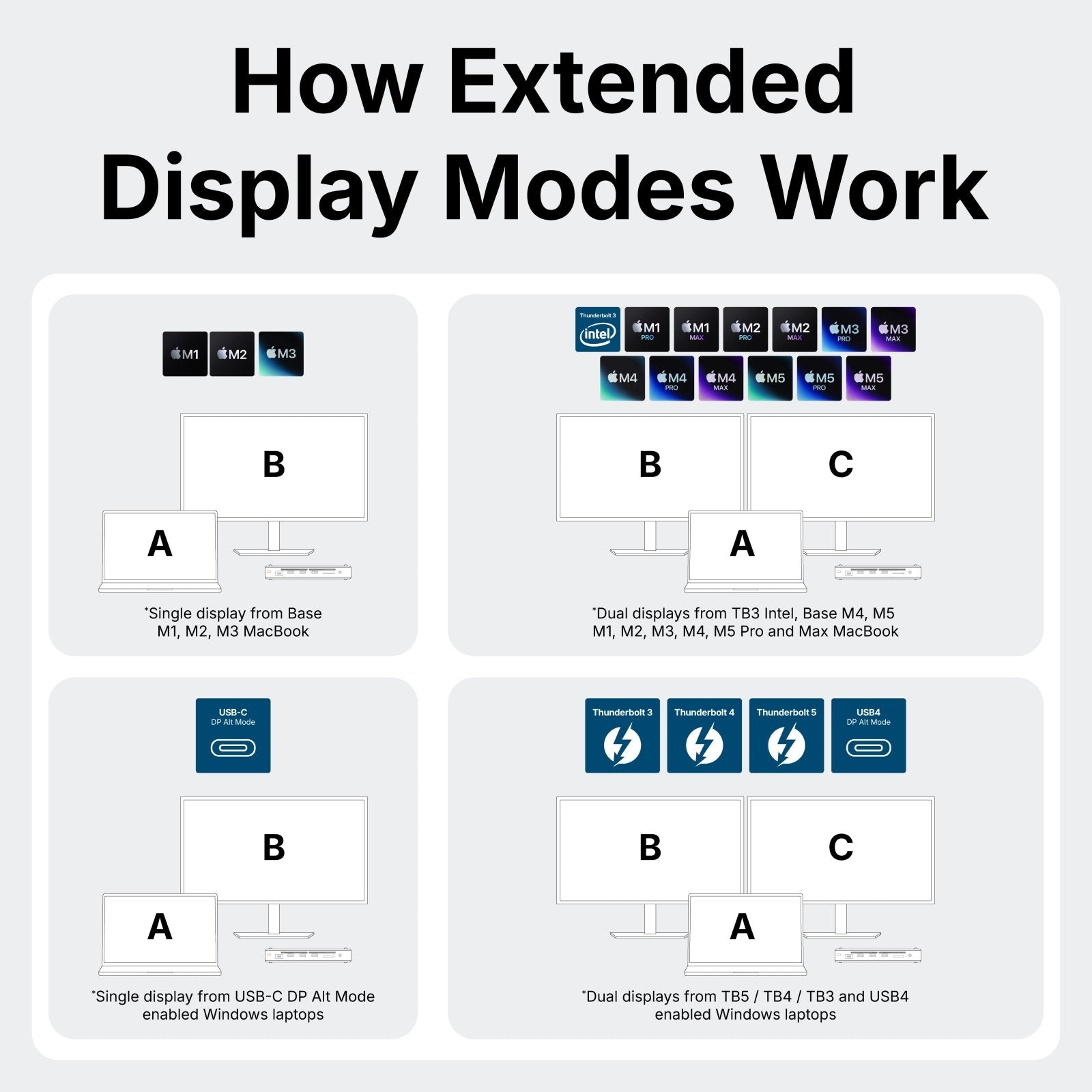

The display arrangement can be adjusted in your operating system’s Display Settings.

Windows will preset identifiers to the attached displays. If they match the physical orientation this identifier does not interfere with the arrangement.

Power and Sleep Settings > Additional Power Settings > Choose what closing the lid does > Do Nothing (On battery and/or Plugged in)

System Preferences > Energy Saver > Slider set to Never

Power Delivery implies the docking station is both powered and providing power to the attached laptop while Power Passthrough implies the docking station does not require a power supply to operate but can pass through power from a third-party power supply.

To check which version of the Thunderbolt™ software, NVM firmware, and drivers you are running, do the following: Click Start. Type Thunderbolt and click on the search result. In the system tray, right-click the Thunderbolt™ icon. Click Settings > Details. Review the versions of the software package, NVM firmware, PD firmware, and drivers. If you are not running the latest versions, navigate to your system manufacturer’s website and download the latest versions.

Supported Operating Systems:
Windows 11, Windows 10, macOS 10.12 or later

Yes, however, an active adapter/cable is required.

Yes, once attached to a Thunderbolt™ 3 or Thunderbolt™ 4 system and the device’s connection is approved in the Thunderbolt™ Control Panel.

No, the VT5400 does not support this DisplayPort feature.
