Radeon HD 7750 SFF 1GB DDR3 5M VHDCI (4x DVI-D, miniDP)

Radeon HD 7750 SFF 1GB DDR3 5M VHDCI (4x DVI-D, miniDP)

Supports up to 5 monitors simultaneously.

The VisionTek Radeon™ HD 7750 1GB SFF 4-Port DVI-D + 1 Mini DisplayPort x16 PCIe graphics card offers the most features and functionality in its class with complete DirectX 11 support and the world’s most advanced graphics, display features and technologies. At the “heart” of the entertainment experience on the PC, things like video playback, editing and transferring content to portable media players are now fast and easy. A great option for business users who engage in multi-view 2D/3D workstation acceleration, the VisionTek Radeon™ HD 7750 1GB SFF 4-Port DVI-D + 1 Mini DisplayPort x16 PCIe is ideal for multi-monitor productivity in financial and corporate marketplaces. Drive up to 5 monitors simultaneously in multiple desktop modes. Platform-independent intelligent power management delivers the power needed to blaze through even the most intense applications while intuitively conserving energy at idle or when demand is low.

Eyefinity
Compliant with next-generation DirectX® 11, Eyefinity Technology with DVI connectivity, enables a single card to support up to four independent display outputs simultaneously.

Avivo™ Video and Display Technology
Avivo™ technology connects to high-resolution displays and home entertainment devices and produces vibrant colors, ultra sharp images, and the smoothest video playback ever offered by VisionTek.

Supported Configurations

  • DVI x1 (Single Link)
  • DVI x2 (Single Link)
  • DVI x3 (Single Link)
  • DVI x4 (Single Link)
  • DisplayPort (via Mini DP to DP Adapter)

Supported Modes

  • 5x1 (Eyefinity)
  • 1x5 (Eyefinity)
  • 4x1 (Eyefinity)
  • 1x4 (Eyefinity)
  • 3x1 (Eyefinity)
  • 1x3 (Eyefinity)
  • 2x2 (Eyefinity)
  • 5 Monitor Extended Desktop

Supported Digital Resolutions

  • 640x480 (Digital)
  • 800x600 (Digital)
  • 1024x768 (Digital)
  • 1152x864 (Digital)
  • 1280x1024 (Digital)
  • 1600x1200 (Digital)
  • 1920x1080 16:9 (Digital)
  • 1920x1200 (Digital)

Supported Resolutions in Eyefinity Mode

  • 3840 x 2160 (2x2) Eyefinity Mode
  • 1920 x 5400 (1x5) Eyefinity Mode
  • 9600 x 1080 (5x1) Eyefinity Mode
  • 1920 x 3240 (1x3) Eyefinity Mode
  • 5760 x 1080 (3x1) Eyefinity Mode
Supported Operating Systems
  • Windows 10
  • Windows 8.1
  • Windows 8
  • Windows 7
  • Windows Vista
  • Windows XP

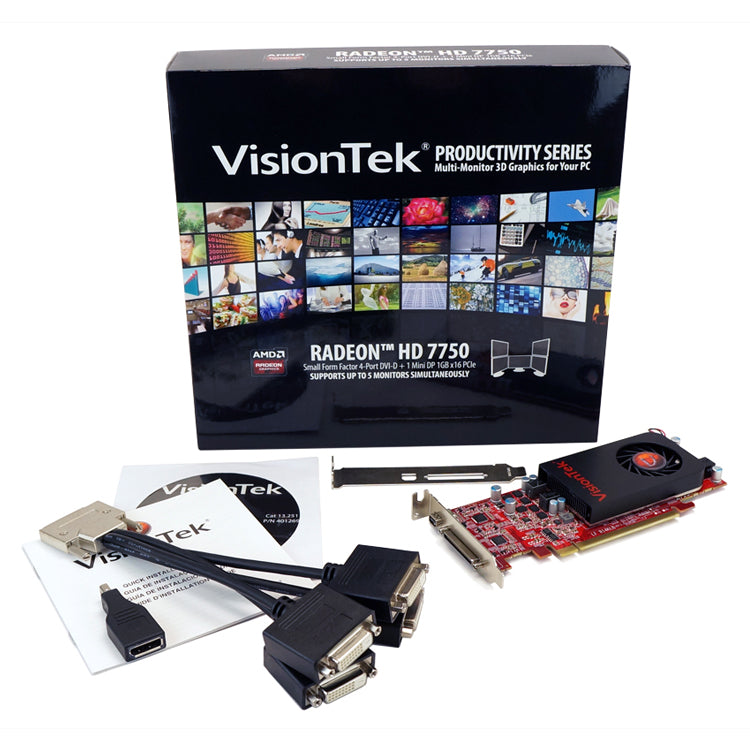

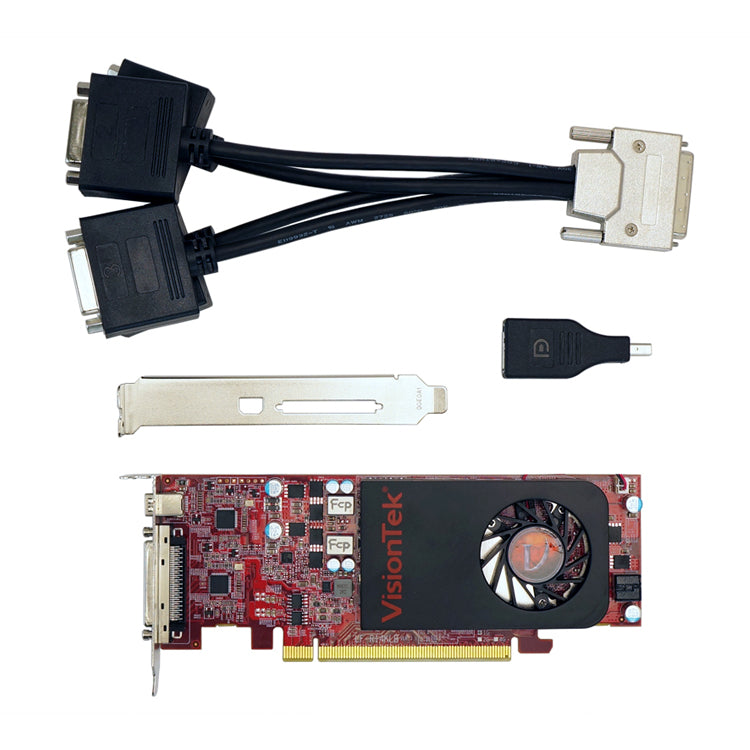

Includes

  • 1 Tall Bracket for Optional ATX Conversion
  • 1 4-Port VHDCI to DVI-D Cable
  • 1 Mini DisplayPort to DisplayPort Adapter
  • 1 Driver CD
  • 1 Quick Install Guide

Specifications

  • VHDCI Connector: Supports 4 DVI Digital Monitors Simultaneously + 1 Mini DisplayPort
  • Supports Single DVI-D, Dual DVI-D, triple DVI-D, Quad DVI-D, Mini DisplayPort
  • HDMI Video & Audio Supported*
  • Single Slot Solution
  • Small Form Factor Design Measures 2.4” x 6.7”
  • Convertible to ATX Form Factor with Included Tall Bracket

*HDMI Requires DVI to HDMI Adapter (Sold Separately)

System Requirements

  • Intel® Pentium® 4/III, Celeron™, AMD™Duron™/Athlon™/Athlon™ XP, or Compatible with x16 PCI Express Slot
  • 256MB of System Memory (1GB+ Recommended for Windows™ Vista)
  • Installation Software Requires CD-ROM Drive
  • DVD Playback Requires DVD Drive
  • Correct Chipset Drivers
  • 250 Watt or Greater Power Supply
  • Single x16 PCI Express Expansion Slot
Warranty: Three Year Limited

NOTE: If you desire monitor to GPU syncing with a VisionTek graphics card, we recommend the use of AMD’s FreeSync solution only. Visit http://www.amd.com/en-us/innovations/software-technologies/technologies-gaming/freesync for more information.
