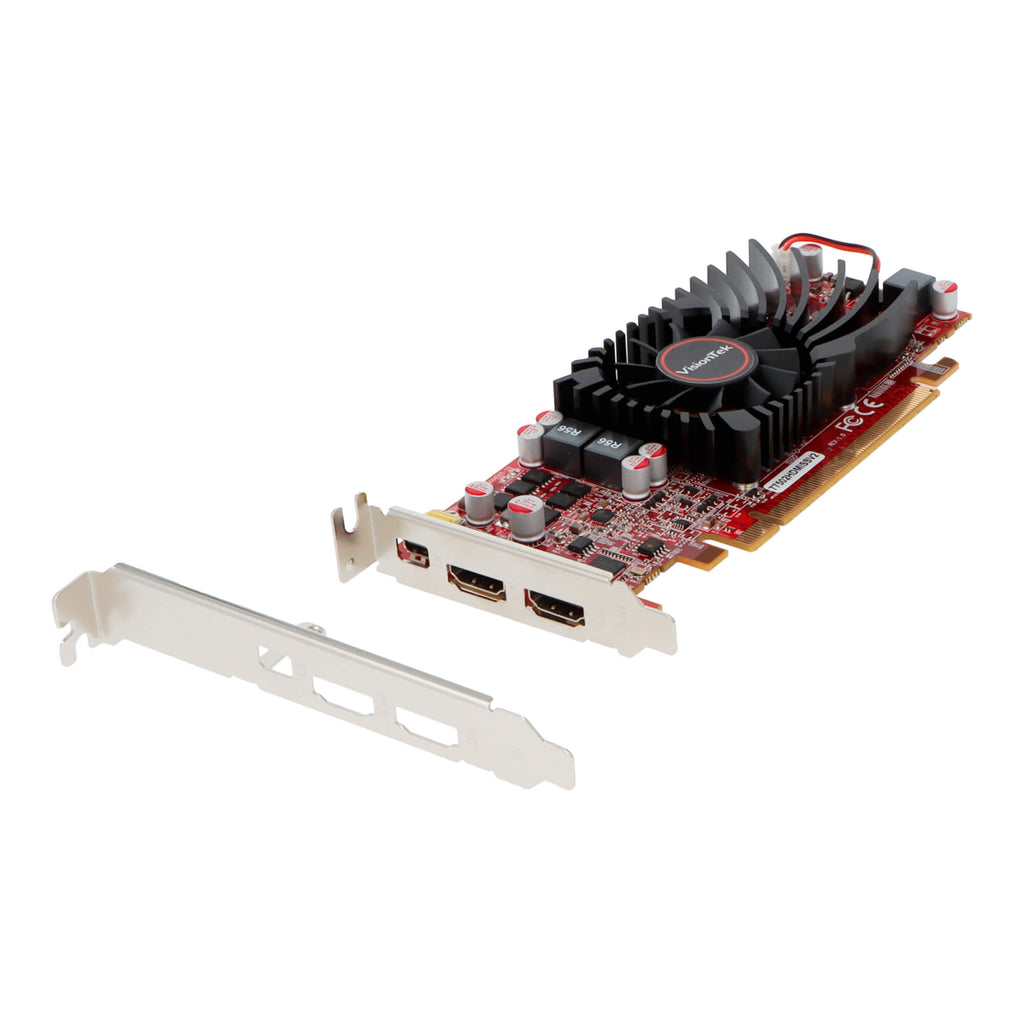

Radeon™ HD 7750 SFF 1GB GDDR3 3M (1x MiniDP, 2x HDMI)

• Radeon™ HD 7750 SFF GPU
• HDMI to DVI Passive Adapter*
• 3.5mm Audio Cable 10ft
• Tall Bracket for ATX Conversion
• Installation Guide

Download the latest drivers from: AMD.com

Coming Soon

Download the latest drivers from: AMD.com

The display arrangement can be adjusted in your operating system’s Display Settings.

Windows will preset identifiers to the attached displays. If they match the physical orientation this identifier does not interfere with the arrangement.

Passive adapters – non active adapters are called passive adapters. There is no easy way to tell the difference between an active and passive adapter. Most often they look exactly alike. Most manufacturers put the word active somewhere on their active adapters, like VisionTek. Though this is not always the case. Rule of thumb is, if it does not say active on the adapter assume it is passive.

Active adapters – these adapters have a chip that helps convert video for the GPU. Your GPU will be able to do this for two monitors but an active adapter is needed for more. Active adapters can only be adapter off of a DP or mDP on a graphics card. The reason for this is a feature that DP has that makes it natively active. Should you be connecting a DP monitor to a DP or mDP port on a card active adapters are unnecessary.

If you are converting your connection from a DisplayPort signal (mDP, DP) to a non DisplayPort signal such as HDMI, DVI or VGA active adapters are required after 2 displays.
